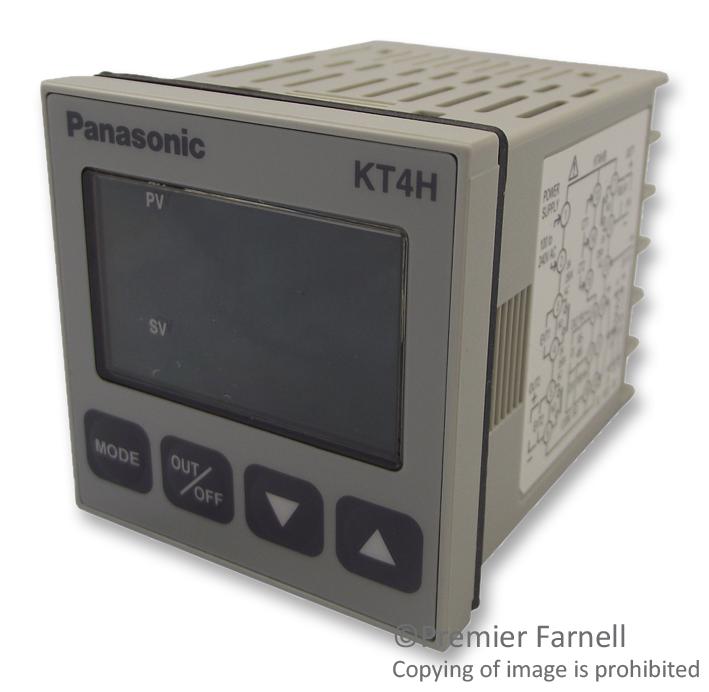

Panasonic AKT4H112110 Temperature Controller
The Panasonic KT series temperature controllers are advanced devices designed for precise thermal process management across various industrial applications. Upgraded models like KT4H, KT8R, and KT9R feature improved visibility, operability, and performance, including auto-tuning, multi-input sensors, and space-saving designs. Their compatibility with DIN rail mounting and communication functions such as RS485 (Modbus) facilitates seamless integration into automation systems. These controllers support thermocouple, RTD, DC voltage, and current inputs, offering reliable and fine control for heating, cooling, and process regulation in demanding environments.
Panasonic AKT4H112110 Temperature Controller Specifications:
- Size: 48 x 24 mm, 48 x 48 mm, 96 x 96 mm, 22.5 x 75 mm
- Power Supply: 100-240 V AC or 24 V AC/DC
- Input Types: Thermocouple, RTD, DC voltage, DC current
- Control Output: Relay contact, SSR drive, open collector
- Alarm Output: Digital relay or open collector
- Communication: RS485(Modbus), multi-node (up to 31 units)
- Display: PV height 8.7mm to 14mm, SV height 6mm to 14mm
- Ingress Protection: IP66 (front panel with gasket)
- Mounting: DIN rail, panel installation, lateral close mounting
- Temperature Range: -10°C to 55°C (varies per model)
- Operation: Auto-tuning, programmable control steps, space-saving design
- Additional Features: Heater burnout alarm, multi-input sensors, auto auto-tuning, fine control sampling period (125-250 ms)
- Dimensions vary by model, with relevant mounting details specified
- Standards: UL, CSA, CE compatibility, robust insulation, and vibration resistance
Buy the Buy Panasonic KT Series Temperature Controller Part Number AKT4H112110 Online
Experience the enhanced accuracy and automation of Panasonic KT series temperature controllers. Designed for demanding industrial environments, these controllers feature auto-tuning, multi-input sensor compatibility, and space-efficient designs. With easy DIN rail mounting and communication options like RS485(Modbus), integrating them into your control systems is straightforward. Their robust standards ensure durability and reliability, helping you optimize heating, cooling, and thermal processes. Purchase online today to streamline your operations and ensure precise temperature management in your manufacturing or processing facilities.
Order your Panasonic KT4H Series temperature controller today and enhance your industrial process accuracy with reliable auto-tuning and multi-sensor support.
Frequently Asked Questions
Where can I buy Panasonic AKT4H112110?
You can click on the BUY or RFQ button to purchase AKT4H112110 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4H112110?
You can download the AKT4H112110 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4H112110?
Panasonic
