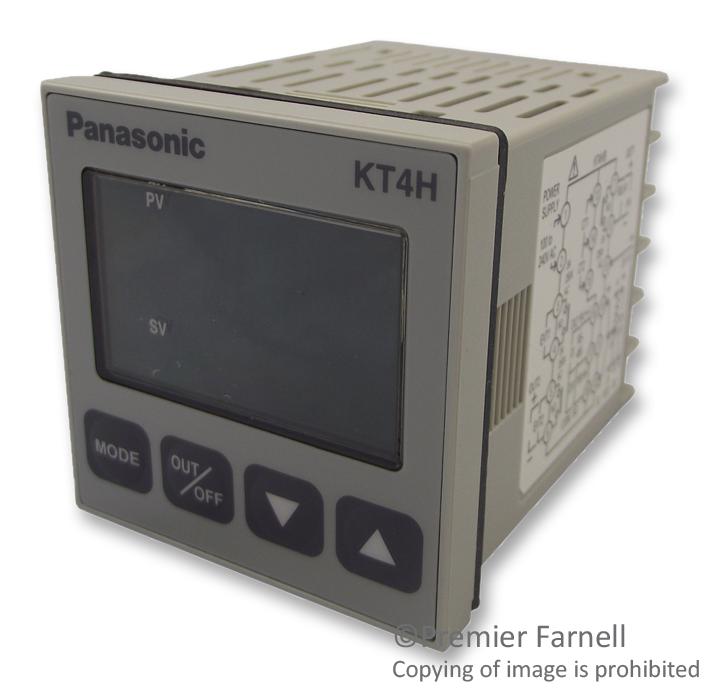

Panasonic AKT4H212203 Temperature Controller
The Panasonic KT Series Temperature Controllers are high-performance devices designed for precise thermal regulation in various industrial applications. Featuring improved visibility with large display characters and simplified operation, these controllers support multi-input sensors such as thermocouples, RTDs, and DC voltage/current. They include advanced auto-tuning functions, flexible control patterns including nine-step programming, and communication capabilities via RS485 protocol. Compact, DIN rail mounting options and robust IP66 protection ensure easy installation and durability in harsh environments, making them ideal for equipment like injection molding, printing machines, and curing ovens.
Panasonic AKT4H212203 Temperature Controller Specifications:
- Physical dimensions: KT2 48x24 mm, KT4R 48x48 mm, KT8R 48x48 mm, KTOR 96x96 mm, KT7 22.5x75 mm, KT4H/KT4B 48x48 mm
- Power supply: 100-240 V AC, 24 V AC/DC, 100-240 V AC (KT7 series), 24 V AC/DC (KT4H/KT4B series)
- Rating power consumption: Approximately 5 VA (KT2), 8 VA (KT4R/KTR), 6 VA (KT8R), 0.125 A max (KT7), varies with size
- Sensor input: Thermocouple types (J, K, R, S, B, E, T, N, PL, C), RTD PT100/1000 (3-wire), DC voltage and current inputs
- Control output: Relay contact outputs (250 VAC 3A), non-contact voltage outputs for SSR drive, open collector alarm outputs
- Communication: RS485 serial port supporting Modbus RTU/ASCII, up to 31 nodes, max distance 1000 m
- Display: Character heights range from 6 to 14 mm depending on model, with bright, easy-to-read characters
- Ingress protection: IP66 front panel (mounting-dependent), suitable for harsh industrial environments
- Installation: DIN rail (KT7 series), panel-mounting, IP66 dust and water-proof options for models like KT4H/KT4B
- Operating temperature: -10°C to 55°C (KT4R, KT8R), 0°C to 50°C (KT2, KT7 series)
- Environmental: Humidity 35-85% RH, no condensation, vibration and shock resistance specified
Buy the Panasonic Series KT Temperature Controllers: AKT4H212203
Purchase the Panasonic Series KT temperature controller online today and experience superior temperature regulation for industrial applications. These controllers feature advanced auto-tuning, multiple sensor inputs, and flexible control modes including nine-step programming. Compact and robust with IP66 front panel protection, they support serial communication via RS485 protocol, ideal for manufacturing, injection molding, and processing equipment. Easy installation with DIN rail or panel mounting options ensures space-saving integration, delivering accuracy, durability, and ease of operation for demanding industrial environments.
Order your Panasonic Series KT4H temperature controller today and enhance your industrial temperature management with reliable, precise control features.
Frequently Asked Questions
Where can I buy Panasonic AKT4H212203?
You can click on the BUY or RFQ button to purchase AKT4H212203 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4H212203?
You can download the AKT4H212203 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4H212203?
Panasonic
