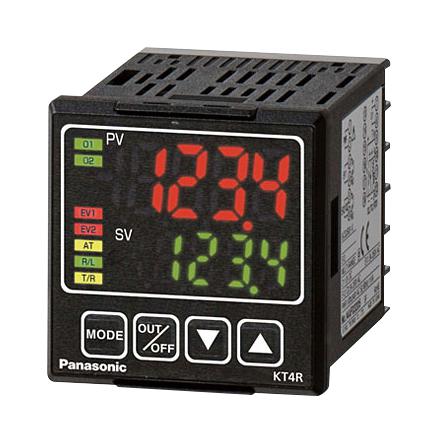

Panasonic AKT4R1122001 Temperature Controller
The Panasonic KT series temperature controllers offer precise and adjustable control for various industrial heating and cooling applications. Featuring models like KT2, KT8R, and KT7, they support multi-input sensors such as thermocouples, RTDs, and DC voltage/current inputs. These controllers provide PID auto-tuning, high responsiveness with sampling intervals as low as 125 ms, and multiple output options including relay and non-contact voltage outputs. Compact sizes, easy wiring, and communication capabilities via RS485 (Modbus protocol) ensure seamless integration into automation systems, contributing to improved efficiency and process stability.
Panasonic AKT4R1122001 Temperature Controller Specifications:
- Size: 48 x 24 mm to 96 x 96 mm
- Power Supply: 100-240 V AC or 24 V AC/DC
- Input Types: Thermocouple, RTD, DC voltage, DC current
- Input Range: -200 to 1370°C, 0-10,000 (current), 0-15 V (voltage)
- Control Outputs: Relay contact 3A 250V AC, Non-contact voltage for SSR drive
- Alarm Outputs: Relays or open collector, up to 3A 250V AC
- Communication: RS485 (Modbus RTU/ASCII), max 31 nodes, 1,000 m distance
- Display: PV: 8.7mm to 14mm height, SV: 6mm to 14mm height
- Sampling Period: 125 ms to 250 ms
- Dimensions: Ranges from 48 x 24 mm to 96 x 96 mm
- Features: Auto-tuning PID, Multi-input sensors, Space-saving design, Easy wiring, IP66 waterproof front panel option
- Mounting: Panel or DIN rail compatible, IP66 rated front panel
- Operation Environment: -10°C to 55°C, humidity 35%-85%, dust-free, non-corrosive gases
Buy the Buy Panasonic Temperature Controller Part Number AKT4R1122001 Online
Experience the advanced control offered by Panasonic temperature controllers. Designed for industrial environments, they feature multi-input sensors, PID auto-tuning, RS485 communication, and compact sizes. Ideal for heating, cooling, and process control applications, these controllers deliver high responsiveness and precise temperature regulation. Easy to install and configure, they ensure stable operations, cost efficiency, and space-saving integration. Upgrade your system today by purchasing online and enjoy seamless automation for manufacturing, injection molding, kitchen appliances, and more.
Order your Panasonic Series AKT4R1122001 temperature controller today and enhance your industrial heating and cooling systems with reliable precision.
Frequently Asked Questions
Where can I buy Panasonic AKT4R1122001?
You can click on the BUY or RFQ button to purchase AKT4R1122001 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AKT4R1122001?
You can download the AKT4R1122001 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AKT4R1122001?
Panasonic
