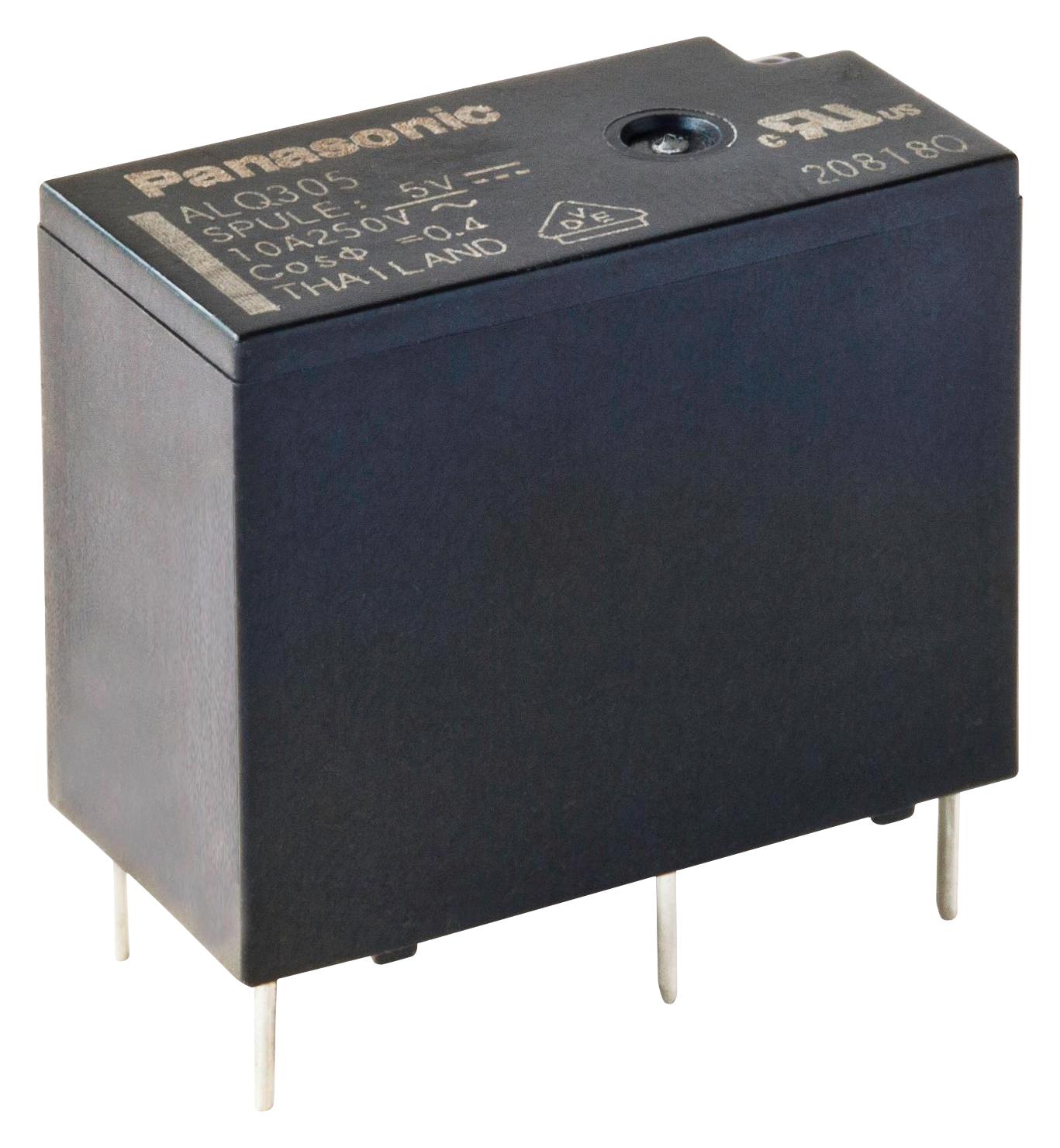

Panasonic ALQ1F12 industrial relay
The Panasonic ALQ relay features compact dimensions of 10(W) x 20(L) x 16(H) mm, making it suitable for small appliances like refrigerators, ovens, washing machines, and air conditioners. It offers high capacity with Form A and Form C contacts rated at 10A and class F coil insulation, approved by UL, VDE, and C-UL, ensuring safe operation at 105°C. The relay has surge voltage resistance up to 8,000V and breakdown voltage of 4,000V, providing high reliability in industrial and control applications. Compact yet powerful, it ensures durable automation and motor control performance.
Panasonic ALQ1F12 industrial relay Specifications:
- Dimensions: 10(W) x 20(L) x 16(H) mm
- Contact Arrangement: 1 Form A and 1 Form C
- Contact Resistance (Initial): Max. 1000 ohms
- Contact Material: AgNi
- Nominal Switching Capacity: 5A at 125VAC, 8A at 250VAC, 5A at 30VDC
- Max Switching Power: 4150W, 1250VA
- Max Switching Voltage: 250V AC, 30V DC
- Max Switching Current: N.O. 10A at 125VAC, N.C. 3A at 125VAC
- Nominal Operating Power: 200mW (Form A), 400mW (Form C)
- Insulation Resistance (Initial): Min. 1,000 MΩ at 500V DC
- Electrical Life (Resistive Load): 10^5 operations at 20 times/min.
- Operate Time: Max. 20 ms
- Release Time: Max. 20 ms
- Vibration Resistance: 10-55 Hz, double amplitude 1.6 mm (functional)
- Shock Resistance: 980 m/s² (destructive)
- Ambient Temperature Range: -40°C to +85°C
- Weight: Approx. 7 g
- Standards: UL, VDE, C-UL recognized, RoHS compliant
Buy the Panasonic Series ALQ Relay: ALQ1F12
Enhance your automation and control systems by ordering the Panasonic ALQ relay online today. Designed for high capacity switching with UL, VDE, and C-UL approvals, this compact relay offers reliable performance in small appliances and industrial equipment. Its surge voltage resistance up to 8,000V and breakdown voltage of 4,000V guarantee durability under demanding conditions. Easy to install and use, the relay ensures safe, efficient, and long-lasting operation for motor control, automation, and appliance applications. Order now to experience quality and dependability.
Order your Panasonic Series ALQ1F12 relay today and ensure reliable control for small appliances and industrial automation projects.
Frequently Asked Questions
Where can I buy Panasonic ALQ1F12?
You can click on the BUY or RFQ button to purchase ALQ1F12 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ALQ1F12?
You can download the ALQ1F12 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ALQ1F12?
Panasonic
