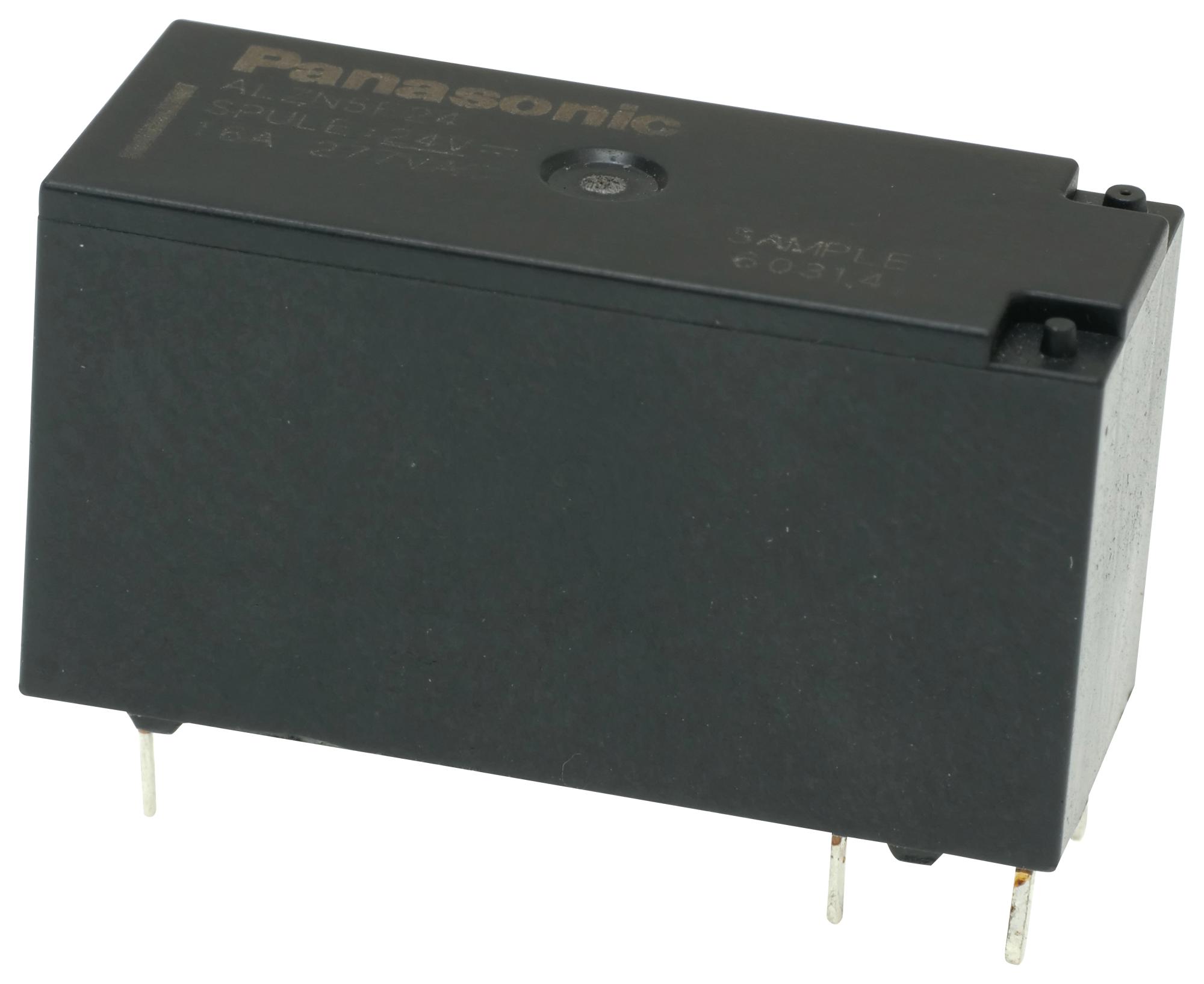

Panasonic ALZN5F09W Power Relay
The ALZN5F09W is a compact, high-current power relay designed for reliable operation in household, office, and industrial appliances. It features flux-resistant protective construction, insulates between coil and contacts up to 10 mm, and supports European reinforced insulation standards. With a low profile height of 15.7 mm, it offers high insulation resistance and heat resistance up to 105°C for Class F insulation. Suitable for applications requiring robust switching capabilities and long electrical life, this relay ensures safety and durability in various electrical systems.
Panasonic ALZN5F09W Power Relay Specifications:
- Type: Low profile flux-resistant relay
- Height: 15.7 mm (.618 inch)
- Dimensions: 12.5 x 28.8 x 15.7 mm
- Material: Silver tin oxide contact material
- Contact rating: 16A 250V AC resistive load
- Insulation resistance: Minimum 1,000 MΩ at 500V DC
- Dielectric strength: Contact-coil 10,000 V AC for 1 min
- Operate time: Max 15 ms
- Release time: Max 5 ms
- Ambient temperature: Up to 105°C (Class F)
- Support European reinforced insulation standards
- Supports 5V, 9V, 12V, 18V, 24V DC coil voltages
- Protection: Flux-resistant construction
- Switching capacity: 4000 VA
- Shock endurance: 100 ms, 7,000 ms destructive shock
- Vibration resistance: 10–55 Hz, 1.5 mm amplitude
- Expected mechanical life: 10^5 cycles
- Compliance: UL/C-UL and VDE in process
Buy the Buy Panasonic Power Relay Part Number ALZN5F09W Online
Order the Panasonic ALZN5F09W power relay online today and ensure your electrical systems operate with high reliability. This compact relay features flux-resistant construction, a robust 16A switching capacity, and supports wide temperature ranges up to 105°C, making it ideal for household, office, and industrial applications. Its high insulation resistance and dielectric strength provide safety and durability in demanding environments. Purchase now to enjoy quick delivery, excellent performance, and seamless integration into your electrical projects.
Buy Panasonic ALZN5F09W now and experience unmatched reliability and performance for your household and industrial electrical needs.
Frequently Asked Questions
Where can I buy Panasonic ALZN5F09W?
You can click on the BUY or RFQ button to purchase ALZN5F09W from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ALZN5F09W?
You can download the ALZN5F09W datasheet or visit the Panasonic website for support.
Who is the manufacturer of ALZN5F09W?
Panasonic
