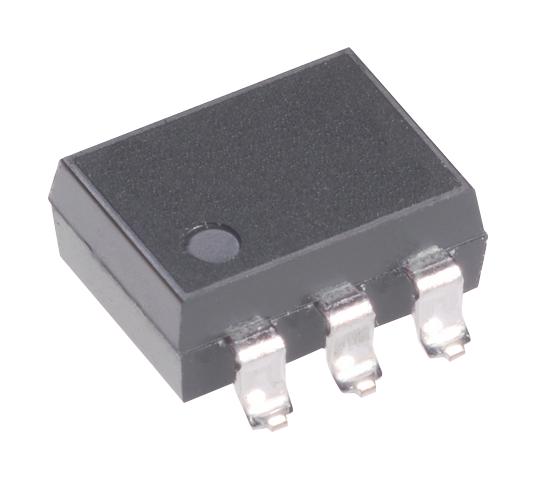

Panasonic AQV112KLA PhotoMOS relay
The AQV112KLA is a non-latch type photoMOS relay offering short circuit protection for DC loads up to 0.5A at 60V. It automatically resets when load current returns to normal, eliminating the need for fuses or polyswitches, which reduces mounting costs and space. Features include high capacity, RoHS compliance, and a compact through-hole package. It is suitable for industrial and security equipment, providing safe, reliable circuit protection with a maximum load voltage of 60V DC, peak AC voltage of 7V, and a total power dissipation of 550mW. Operating temperature ranges from -40°C to +85°C, ensuring durability in various environments.
Panasonic AQV112KLA PhotoMOS relay Specifications:
- Load voltage: 7 to 60V DC
- Load current: up to 0.5A peak DC
- Peak AC voltage: 7V
- Power dissipation: 550mW maximum
- Isolation voltage: 1,500 V AC
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- LED forward current: 50 mA
- Input reverse voltage: 5V
- Peak forward current: 1A
- Total power dissipation: 550mW
- Mounting: Through-hole or surface-mount options
Buy the Panasonic Series AQV Short Circuit Protection: AQV112KLA
Experience reliable circuit protection with Panasonic AQV112KLA PhotoMOS relay, designed for industrial applications. Its automatic reset feature eliminates the need for fuses, reducing mounting costs and space. Capable of handling loads up to 0.5A at 60V DC, it ensures safe operation and quick recovery after short circuits. Perfect for security and industrial equipment, this RoHS-compliant relay offers high durability across a wide temperature range. Order online now and enhance your circuit safety with confidence and efficiency.
Get Panasonic AQV112KLA today—built for precise circuit protection and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic AQV112KLA?
You can click on the BUY or RFQ button to purchase AQV112KLA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQV112KLA?
You can download the AQV112KLA datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQV112KLA?
Panasonic
