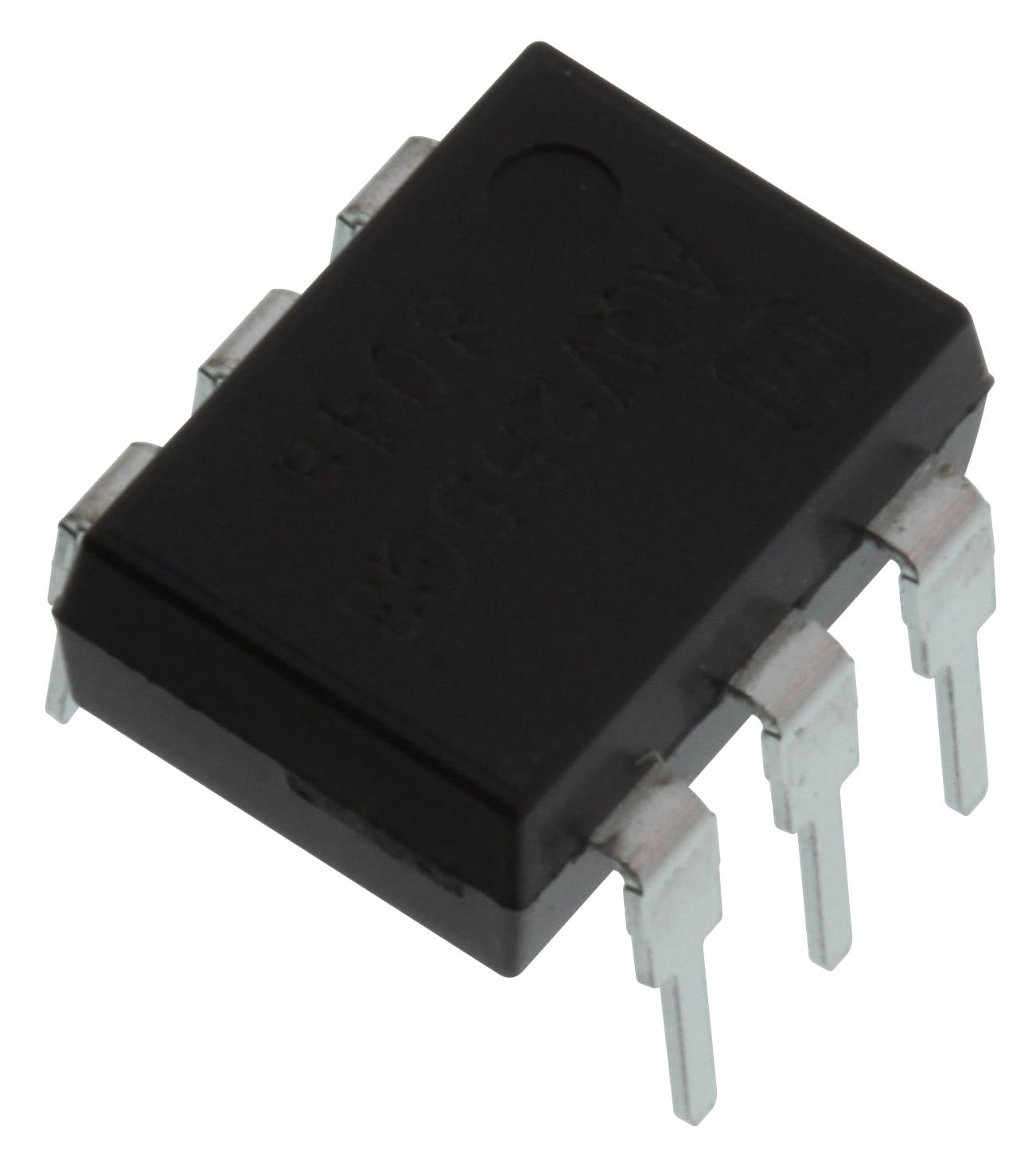

Panasonic AQV209G PhotoMOS Relay
The PhotoMOS HF 1 Form A High Capacity relay features a 1,200 V load voltage, low on resistance (typical 1.0Ω), and a 6-pin DIP package. Designed for industrial automation, it supports continuous load currents of 0.75 A with peak capacities up to 1.5 A, and peak AC/DC load voltage ratings of 1200 V. Designed for high reliability, it includes built-in short-circuit protection and is suitable for switching applications requiring high voltage isolation and low on-resistance. The relay's compact size and robust construction make it ideal for controlling high voltage loads in industrial equipment and control systems.
Panasonic AQV209G PhotoMOS Relay Specifications:
- Load Voltage: 1,200 V (Peak AC)
- On Resistance: Typical 1.0Ω
- Continuous Load Current: 0.75 A
- Peak Load Voltage: 1200 V
- Peak Load Current: 1.5 A
- Package: DIP 6-pin
- Isolation voltage: 1500 Vrms
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- Soldering: Infrared reflow max 2 times at 150-180°C
- Dimensions: Approximate length 13 mm, width 6 mm, height including standoff
- Supports AC/DC dual-use applications
- Designed for industrial automation and high-voltage switching
- Built-in short circuit and surge protection features
Buy the Panasonic Series High Capacity PhotoMOS: AQV209G
Purchase Panasonic AQV209G online to ensure reliable high voltage switching in industrial automation and control systems. This high-capacity relay supports load voltages up to 1200 V and continuous load currents of 0.75 A, with low on resistance for efficient operation. Its robust construction includes integrated protection features for surge and short circuit conditions, making it suitable for high-reliability applications. Compact and easy to install, this relay guarantees excellent performance in demanding environments, helping optimize your control system’s safety and efficiency. Buy now and experience durable, high-performance switching with Panasonic’s trusted quality.
Get Panasonic AQV209G today—built for high voltage switching and long-lasting durability in industrial automation systems.
Frequently Asked Questions
Where can I buy Panasonic AQV209G?
You can click on the BUY or RFQ button to purchase AQV209G from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQV209G?
You can download the AQV209G datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQV209G?
Panasonic
