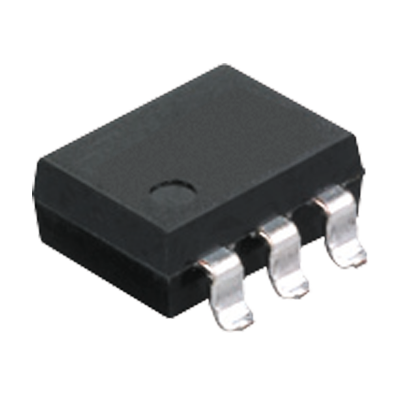

Panasonic AQV210EA PhotoMOS Relay
The AQV210EA Photomos relay features reinforced insulation and controls low-level analog signals with high isolation using optoelectronic technology. It supports various load types such as relays, motors, lamps, and solenoids, with stable on resistance, low off-state leakage current, and no external power supply required for the internal MOSFET driver. Its compact design ensures easy circuit integration, suitable for high-speed inspection, data communication, and telephone equipment. The relay's parameters include a 5,000V reinforced isolation voltage, load capacity up to 250mA, and operation across -40°C to +85°C temperatures.
Panasonic AQV210EA PhotoMOS Relay Specifications:
- Isolation Voltage: 5,000 V AC
- Load Voltage: 350V-400V (peak AC)
- Load Current: 150mA (standard), 130mA (reinforced)
- Peak Forward Current: 1A
- Forward Voltage: Max 1.5V at 5mA
- On Resistance: Max 17.59Ω
- Reply Time: Turn on 0.5 ms, Turn off 0.05 ms
- Temperature Range: -40°C to +85°C
- Storage Temperature: -40°C to +100°C
- Power Dissipation: 75mW (input), 500mW (output)
- Package Types: Through hole and surface-mount
Buy the Panasonic Series AQV PhotoMOS: AQV210EA
Purchase the Panasonic PhotoMOS relay AQV210EA online now to benefit from high-insulation, low on-resistance, and excellent control of low-level signals. Crafted for precision load switching, its reinforced insulation ensures safety across demanding applications. Perfect for automation, unified control systems, or communication devices, this relay offers compactness, fast switching times, and durability. Enjoy easy integration into your projects by ordering the AQV210EA today and ensure reliable operation in your critical electronic and industrial applications.
Order your Panasonic Series AQV210EA PhotoMOS relay today and enhance your electronic control systems with reliable, high-insulation optocouplers.
Frequently Asked Questions
Where can I buy Panasonic AQV210EA?
You can click on the BUY or RFQ button to purchase AQV210EA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQV210EA?
You can download the AQV210EA datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQV210EA?
Panasonic
