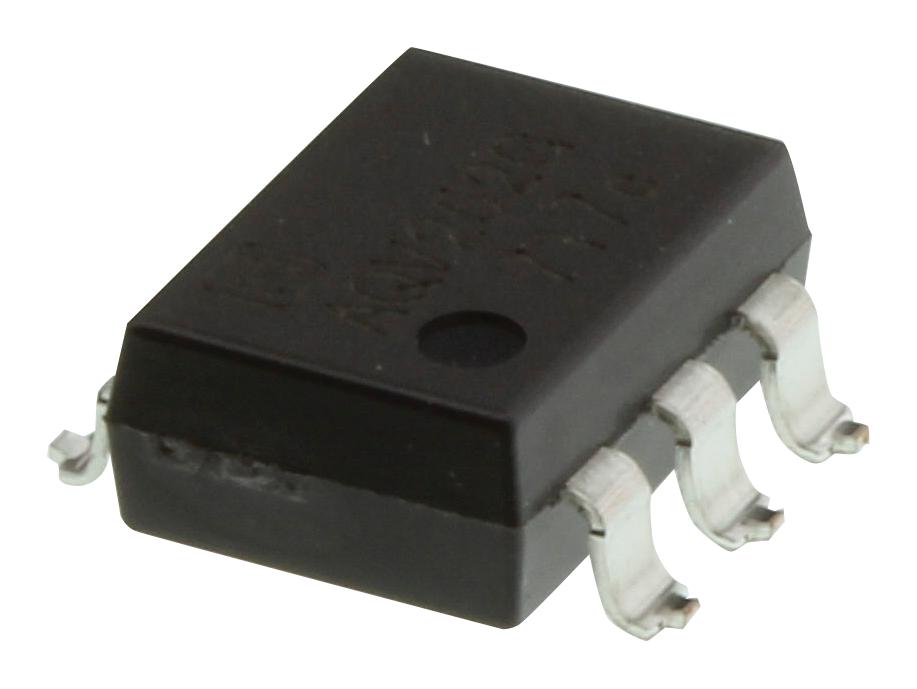

Panasonic AQV214EHA PhotoMOS Relay
The AQV214EHA is a high-reliability PhotoMOS relay designed for controlling low-level analog signals with extremely low offset voltage, providing high isolation and stable on resistance. It features reinforced insulation rated at 5,000V, low off-state leakage current, and no need for a dedicated power supply to drive the MOSFET, facilitating simple circuit design. Suitable for high-speed inspection, data communication, and safety applications, it offers high-speed switching with minimal temperature effects and durable long-term operation in industrial environments.
Panasonic AQV214EHA PhotoMOS Relay Specifications:
- Isolation voltage: 5,000 V AC
- Load voltage: 350V-400V AC/DC
- Load current: 0.13A - 0.25A
- Input LED forward current: 5-10 mA
- Input reverse voltage: 5 V
- Peak forward current: 1 A
- Power dissipation: 75 mW
- Switching speed: 0.05 ms to 2.0 ms
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +100°C
- Output capacitance: 45-50 pF
- Off state leakage current: <1 pA
- Resistance: 17.52 ohms (max), typical 6.02 ohms
- Dimensions: Compatible with standard through-hole and surface-mount packages
Buy the Panasonic Series GU-E PhotoMOS: AQV214EHA
Order the Panasonic AQV214EHA PhotoMOS relay today online and enjoy enhanced control of low-level signals with reinforced insulation, stable resistance, and minimal leakage. Perfect for high-speed inspection, data communication, and safety applications, this relay offers high-voltage isolation and reliable switching speeds in compact packages. Its design eliminates the need for external power supplies to drive MOSFETs, making circuit implementation easier. Purchase now to ensure your system benefits from durable and high-performance switching capabilities.
Buy Panasonic AQV214EHA now and experience unmatched reliability and high-speed switching ideal for industrial automation and communication systems.
Frequently Asked Questions
Where can I buy Panasonic AQV214EHA?
You can click on the BUY or RFQ button to purchase AQV214EHA from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AQV214EHA?
You can download the AQV214EHA datasheet or visit the Panasonic website for support.
Who is the manufacturer of AQV214EHA?
Panasonic
