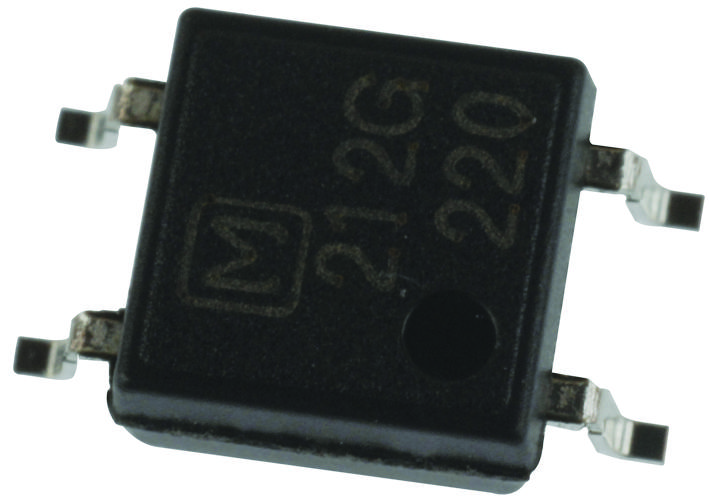

Panasonic AQY212GS High Capacity Electronic Relay
The AQY212GS is a miniature SOP4-pin surface-mount relay designed for high capacity switching in industrial systems. It supports AC and DC loads up to 40V and 1.6A, featuring low on resistance of typical 0.1 Ω and a broad lineup of high capacity types. Operating temperature ranges from -40°C to 85°C, with maximum switching frequency of 40 times/sec. Ideal for measurement, security, and disaster prevention systems, this relay ensures reliable performance with low power dissipation and high isolation voltage of 1,500 V AC.
Panasonic AQY212GS High Capacity Electronic Relay Specifications:
- Load Voltage (Peak AC): 40V
- Load Current: 1.6A
- Peak Load Current: 4A
- Operating Temperature Range: -40°C to +85°C
- On Resistance: Typical 0.1 Ω
- Isolation Voltage: 1,500 V AC
- Power Dissipation: 75 mW
- Switching Frequency: Max. 40 times/sec
- Control Input Current: 0.9 mA typical at 5V LED forward current
- Leakage Current: Max. 1 nA
- Turn On Time: Max. 3.0 ms
- Turn Off Time: Max. 0.5 ms
- Package: SOP4 surface-mount
- Maximum Power Dissipation: 450 mW
- Storage Temperature Range: -40°C to +100°C
Buy the Panasonic AQY212GS – Reliable High Capacity Switch for Industrial Applications
Enhance your industrial automation and security systems with the Panasonic AQY212GS, a high capacity miniature relay supporting AC and DC loads up to 40V and 1.6A. Its compact SOP4 package offers low on resistance, high isolation voltage, and reliable switching performance within -40°C to 85°C temperatures. Ideal for industrial, measurement, and safety applications, this relay ensures precise, efficient operation for demanding environments. Purchase online today to experience quality and dependability in your electronic switching needs.
Buy Panasonic AQY212GS now and experience unmatched reliability and performance in high-capacity switching for industrial, security, and measurement systems.
