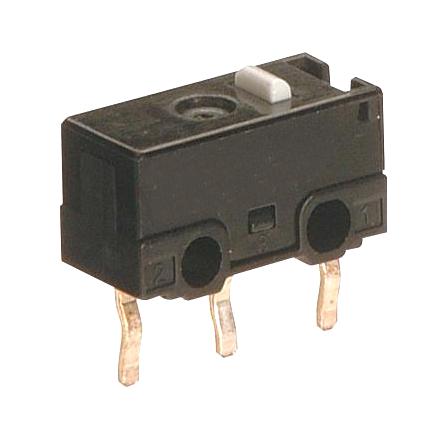

Panasonic ASQ10410 Sealed Industrial Switch
Reliable long stroke, sealed contact switches ideal for industrial environments. Featuring high contact reliability, effective sealing against contaminants, and silent sliding contact operation, these switches support low-level switching loads. Suitable for automotive detection and household appliances, their robust design ensures durability and environment resistance. Various actuator types, including pin plunger and leaf lever, facilitate flexible installation options. RoHS compliant and engineered for demanding applications, these switches provide dependable performance in harsh conditions with a long operational life.
Panasonic ASQ10410 Sealed Industrial Switch Specifications:
- Contact rating: 1mA 5 VDC to 100 mA 30 V DC, consult for 42 V DC
- Operation environment: -40°C to +85°C, no freezing or condensing, humidity 25-85% RH
- Maximum operating speed: 30 to 500 mm/sec
- Maximum cycle rate: 120 cpm, dielectric strength: 600 Vrms between terminals
- Insulation resistance: Min. 100 MQ at 500 V DC, contact resistance: Max. 1Ω
- Vibration resistance: 0.75 mm amplitude, shock resistance: 980 m/s², endurance based on actual conditions
- Protection grade: IP67, approx. weight: 0.8 g to 5.4 g depending on type
- Soldering: Max. 350°C for 3 seconds, avoid excessive heat to prevent damage
- Mounting: Use M3 screw, torque max. 0.29 N·m, ensure proper insulation and no tensile load on terminals
- Materials: Rubber elastomer sealing, plastic housing, various terminal configurations
Buy the Panasonic ASQ1 – Reliable Sealed Switches for Industrial Applications
Purchase Panasonic Series ASQ1 sealed switches online now to ensure robust performance in industrial and automotive applications. These switches offer long stroke, silent sliding contact, high resistance to environmental factors, and a compact design, making them perfect for detecting door openings, shift lever positions, and household appliances. With easy installation options, RoHS compliance, and reliable Electrical ratings, they provide durability and peace of mind. Order today and upgrade your equipment with high-quality, dependable switches that meet the highest standards of performance.
Order your Panasonic Series ASQ1 sealed switches today and enhance your project with dependable sealing, long stroke operation, and high reliability for demanding environments.
Frequently Asked Questions
Where can I buy Panasonic ASQ10410?
You can click on the BUY or RFQ button to purchase ASQ10410 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ASQ10410?
You can download the ASQ10410 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ASQ10410?
Panasonic
