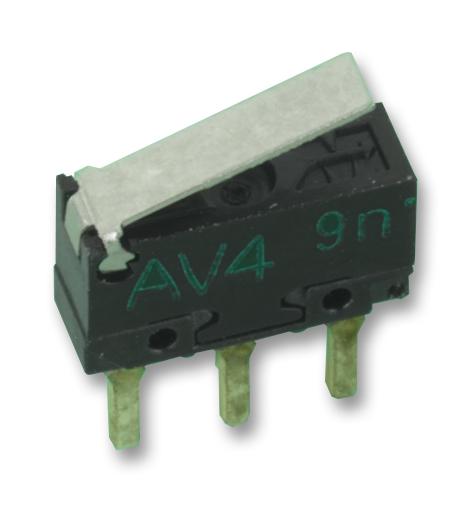

Panasonic AV32143 Digital Mini Switch
The AV32143 switch is a high-reliability, minutely operated snap-action micro switch featuring a short hinge lever actuator, AgNi alloy contact material, and a robust switch body designed for precise control in electronic and industrial applications. Its compact size and stable mechanical and electrical characteristics make it suitable for low-level circuit switching loads. It offers a maximum operating force of 0.39N and is optimized for high endurance with a long service life and dependable performance in various environments, with protection grade IP40. Ideal for automation systems requiring precise and durable switching components.
Panasonic AV32143 Digital Mini Switch Specifications:
- Operating Force: 0.39 N
- Contact Material: AgNi alloy
- Protection Grade: IP40
- Switch Type: Micro switch with hinge lever actuator
- Max. Operating Voltage: 125V AC, 5A; 30V DC, 3A
- Electrical Life: Min. 50,000 cycles
- Mechanical Life: Min. 100,000 cycles
- Contact Resistance: Max. 50 mΩ
- Insulation Resistance: Min. 100 MΩ at 500V DC
- Dielectric Strength: 1,500 V rms between terminals and ground
- Temperature Range: -25°C to +85°C
- Dimensions: Approximate diameter 4.0 mm, height 10.9 mm
- Applicable for low-level circuit switching, automation, and electronic control systems.
- Mounting: Panel or PCB based, with terminal options including solder, PC board, and quick connect.
- Seal: IP40 for dust resistance, suitable for general industrial environments.
- Shock/Vibration Resistance: Designed to withstand standard operational shocks and vibrations.
- Markings: Standard compliant with safety and quality standards.
Buy the Buy Panasonic AV32143 Subminiature Switch Part Number AV32143 Online
Order the Panasonic AV32143 subminiature switch online today to ensure reliable, high-precision switching performance for your electronic applications. Its compact design, AgNi alloy contact material, IP40 protection, and durability make it ideal for low-level circuit control, automation, and industrial automation systems. With a maximum operating force of 0.39N and a life cycle of over 100,000 cycles, this switch guarantees dependable operation in demanding environments. Purchase now for quick delivery and confident integration into your design.
Get Panasonic AV32143 today—built for precision and long-lasting durability in electronic and automation projects.
Frequently Asked Questions
Where can I buy Panasonic AV32143?
You can click on the BUY or RFQ button to purchase AV32143 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AV32143?
You can download the AV32143 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AV32143?
Panasonic
