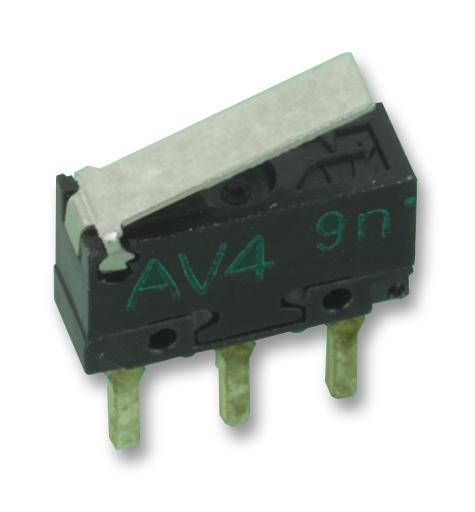

Panasonic AV3834613 Subminiature Switch
These subminiature switches with innovative flux-resistant construction and high operating position accuracy are ideal for low-level circuits requiring precise and reliable switching. Featuring both in-line and cross-line terminal types, including self-standing, PC board, and quick-connect options, they offer versatile installation and operation. The series includes long life and standard versions, with contact materials like AgNi and Au-clad layers for enhanced durability. Rated for resistive and inductive loads up to 5A, with protection grade IP40, these switches are suitable for demanding industrial and electronic applications requiring high reliability and precise actuation.
Panasonic AV3834613 Subminiature Switch Specifications:
- Contact rating: 125V AC 3A, 250V AC 3A, 30V DC 3A, 125V DC 0.4A
- Protection grade: IP40
- Operating Force: 0.12N to 1.47N depending on type
- Actuator types: Pin plunger, hinge lever, simulated roller, roller lever
- Terminal types: Solder, self-standing PC board, .110 quick-connect
- Contact materials: AgNi alloy, CuNi alloy + AgNi alloy + Au-clad layers
- Travel distances: OP ~ 8.8-12.2 mm, OT ≥ 0.4 mm, PT up to 3.5 mm
- Vibration resistance: Max. 294 m/s², Shock resistance: Max. 294 m/s²
- Operating temperature: -25°C to +85°C, Protection grade: P40
- Durability: Min. 5×10^5 cycles for standard, 3×10^7 cycles for long life versions
- Application: Low-level circuitry, electronic control, industrial equipment
- Dimensions: Various lever and actuation sizes, detailed CAD data available
Buy the Panasonic Series FS Switches: AV3834613
Purchase Panasonic AV3834613 subminiature switches online today—engineered for high precision, reliable performance in low-level circuit applications. Featuring flux-resistant construction, multiple terminal configurations including solder, PC board, and quick-connect, and contact materials like AgNi and Au-clad layers, these switches suit industrial environments demanding durability and accuracy. Rated for resistive and inductive loads up to 3A-5A, with protection grade IP40, they ensure consistent operation. Easy to install, compact, and available for online purchase, these switches meet critical control and automation needs effortlessly.
Get Panasonic AV3834613 switches today—built for precise actuation, long-lasting durability, and versatile installation options.
Frequently Asked Questions
Where can I buy Panasonic AV3834613?
You can click on the BUY or RFQ button to purchase AV3834613 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AV3834613?
You can download the AV3834613 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AV3834613?
Panasonic
