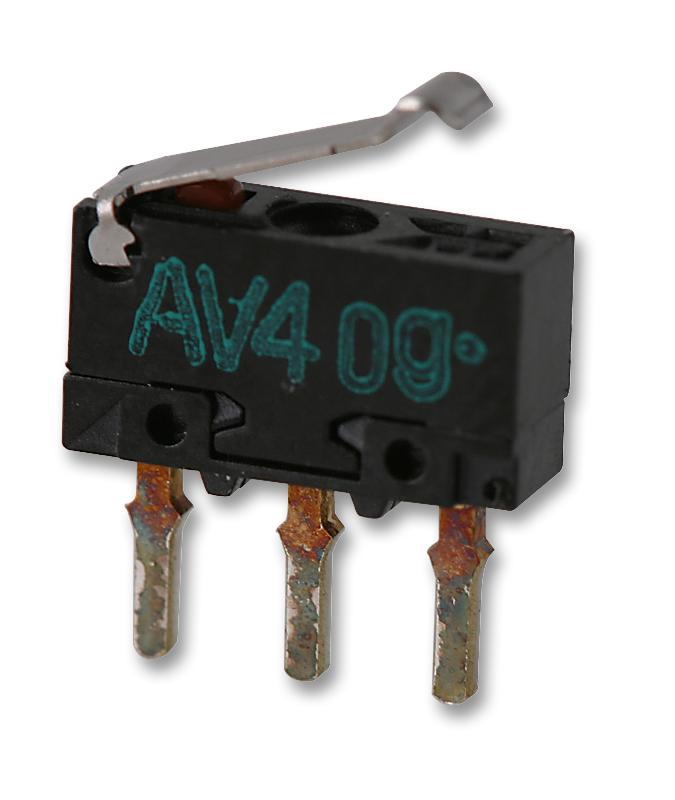

Panasonic AV404461 Miniature Snap-Action Switch
This miniature snap-action switch is designed for compact electronic applications, offering high durability with a mechanical life of 300,000 operations. Featuring stainless steel plated contacts—silver or gold—the switch ensures reliable performance in tight spaces, ideal for camera, VCR, audio equipment, and office automation devices. Its various configurations include PC board and solder terminals with actuators like pin plungers, hinge levers, and simulated roller levers. With low contact resistance and high insulation resistance, this reliable switch is suitable for controlling resistive loads in sensitive electronic environments, providing consistent switching performance over extensive operational cycles.
Panasonic AV404461 Miniature Snap-Action Switch Specifications:
- Contact rating: Resistive load (cosφ 1), Silver plated contact 0.54 V DG, Gold plated contact 0.14 V DG
- Mechanical life: Minimum 3 x 10^5 operations at 60 opm
- Electrical life: Silver contact minimum 2 x 10^5 operations at 0.5A 30V DC, Gold contact minimum 2 x 10^5 operations at 0.1A 30V DC
- Insulation resistance: Minimum 100 MΩ at 250V DC between non-continuous terminals
- Voltage withstand: 500V AC for 1 minute between terminals and other metal parts
- Vibration resistance: 10 to 55 Hz at single amplitude of 0.75 mm (pin plunger), 0.1 mm (lever type)
- Shock resistance: 294 m/s^2 (pin plunger), 147 m/s^2 (lever)
- Operating temperature: -25°C to +80°C (non-freezing below 0°C)
- Unit weight: Approx. 0.2g (PC board terminal), 0.39g (solder terminal with mounting holes)
Buy the Panasonic AV404461 – Reliable Snap-Action Switch for Industrial Applications
Purchase the Panasonic AV404461 miniature snap-action switch online today and experience reliable switching performance for your electronic devices. Designed with high durability, high contact reliability, and a mechanical life of 300,000 operations, this switch is perfect for compact equipment like cameras, VCRs, audio gear, and office automation. Its multiple terminal configurations and actuators—including pin plungers and lever types—make it versatile for various control applications. Order now to add dependable, high-quality switches to your inventory and improve your electronic systems' longevity and performance.
Order your Panasonic AV404461 snap-action switch today and ensure dependable performance in your electronic projects, offering high durability and precise switching in compact spaces.
Frequently Asked Questions
Where can I buy Panasonic AV404461?
You can click on the BUY or RFQ button to purchase AV404461 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AV404461?
You can download the AV404461 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AV404461?
Panasonic
