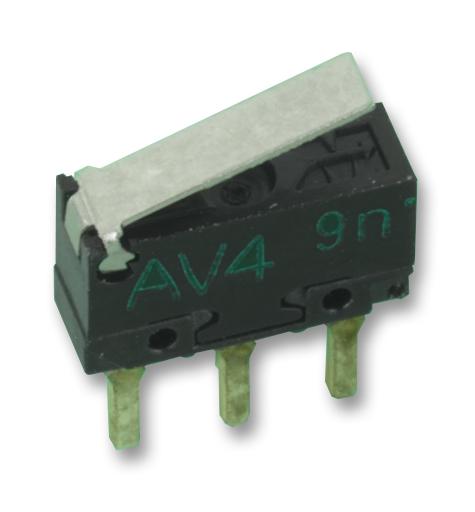

Panasonic AV4424 Miniature Switch
These miniature snap-action switches are compact, lightweight, and capable of high-precision operation with a mechanical life of at least 300,000 cycles. Available with silver or gold contacts, they feature IP40 protection, solder or PC board terminals, and various actuator options like hinge and roller levers. Designed for dense mounting in visual, audio, and automation equipment, they ensure reliable switching with minimal space. Suitable for both AC and low-capacity DC applications, they are RoHS compliant and built for durability in demanding environments.
Panasonic AV4424 Miniature Switch Specifications:
- Protection Grade: IP40
- Contact Material: Ag plated or Au plated contact
- Electrical Life: Min. 2 x 10^10 operations (0.5A 30V DC) or 2 x 10^10 operations (0.1A 30V DC)
- Mechanical Life: Min. 300,000 operations
- Operating Force: Max. 0.98 N
- Release Force: Min. 0.15 N
- Pretravel: Max. 2.8mm
- Overtravel: Min. 1.2mm
- Mounting Options: Solder terminal, PC board straight or angle terminal, mounting holes
- Operating Temperature Range: -25°C to +80°C
- Compliance: RoHS compliant
- Dimensions: External diameter approximately 5.8mm, height varies with actuator types
- Shock Resistance: Pin plunger type Min. 294m/s^2
- Vibration Resistance: Pin plunger type 10-55Hz at 0.75mm amplitude
- Certification: UL, CSA
Buy the Panasonic AV4424 – Reliable Miniature Switches for Industrial Applications
Order Panasonic AV4424 miniature switches online today for high durability, precise operation, and versatile mounting options. Perfect for dense electronic assemblies and automation systems, these switches offer reliable performance with a mechanical life of over 300,000 cycles. They are designed to operate in various environments, ensuring safety and efficiency in control circuits. With RoHS compliance and multiple actuator configurations, purchasing online gives you quick access to top-quality, compact switches suitable for industrial, visual, and audio equipment.
Buy Panasonic AV4424 miniature switches now and experience unmatched reliability and performance in your electronic and automation projects.
Frequently Asked Questions
Where can I buy Panasonic AV4424?
You can click on the BUY or RFQ button to purchase AV4424 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AV4424?
You can download the AV4424 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AV4424?
Panasonic
