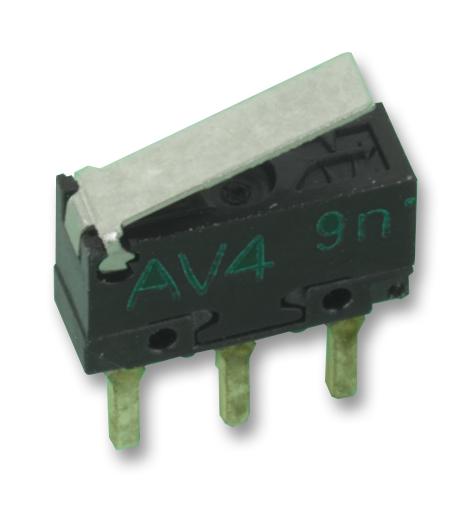

Panasonic AV452461 Miniature Switch
The AV452461 is an ultra-miniature, light-weight snap action switch designed for compact electronic and automation equipment. Featuring high mechanical durability with over 300,000 operations and IP40 protection grade, it offers reliable performance with Ag or Au plated contacts. Suitable for dense PCB mounting with various terminal options, including straight, right angle, and solder terminals, it operates within a voltage range of up to 30V DC at 0.5A. The switch's small size and precise actuation make it ideal for visual, audio, and office automation devices, providing long-lasting, high-precision operation.
Panasonic AV452461 Miniature Switch Specifications:
- Size: Ultra-miniature, lightweight
- Protection Grade: IP40
- Contact Material: Silver plated or Gold plated
- Current Rating: 0.5A
- Voltage Rating: 30V DC
- Actuator Types: Pin plunger, hinge lever, simulated roller lever
- Terminal Types: Straight, right angle, solder with mounting holes
- Mechanical Life: Min. 300,000 operations
- Operating Force: 0.98 N for pin plunger, 0.25 N for hinge lever, 0.29 N for roller lever
- Pretravel: Max. 2.8mm (hinge/roller lever), Max. 0.3mm (pin plunger)
- Overtravel: Min. 1.2mm (hinge/roller lever), Min. 0.4mm (pin plunger)
- Operating Position: Approx. 8.8mm (hinge lever type)
- Weight: Approx. 0.2g (PCB terminal), 0.39g (solder terminal)
Buy the Panasonic Series AV4 Snap Action Switches: AV452461
Experience the reliability and compact design of Panasonic AV452461, a miniature snap action switch ideal for dense PCB mounting in automation, audiovisual, and office equipment. With a mechanical life of over 300,000 operations, it features Ag or Au plated contacts suitable for low-current DC applications up to 0.5A at 30V DC. Its IP40 protection grade and various terminal options ensure versatility and durability for precise, long-term use in various electronic devices. Purchase online today for dependable performance and space-saving solutions.
Get Panasonic AV452461 today—built for high-precision and long-lasting durability in compact electronic applications.
