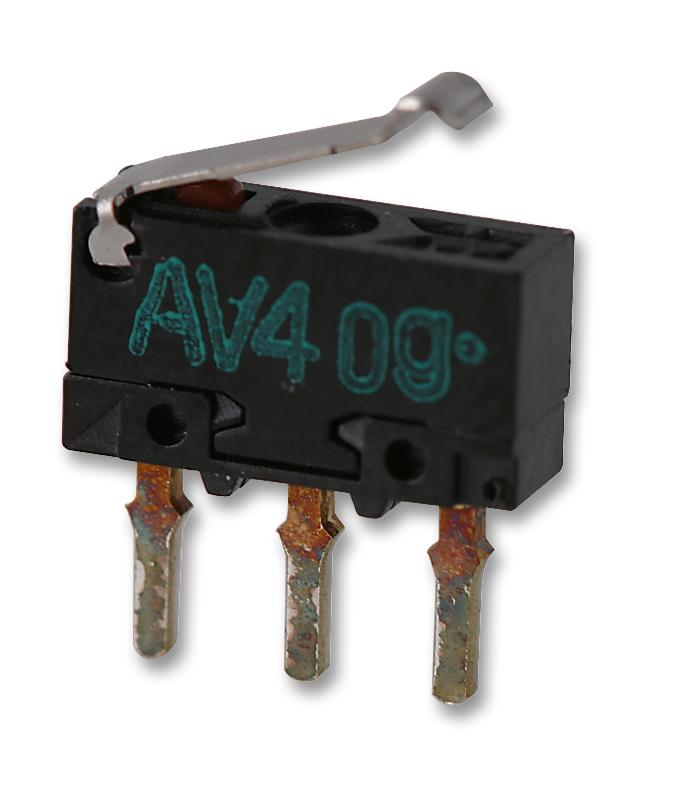

Panasonic AV4544 Miniature Snap Action Switch
The AV4544 miniature switch offers ultra-miniature size and light weight, ideal for dense electronic equipment such as visual and audio devices, office automation, and portable electronics. Equipped with solder or PC board terminals, it features a snap-action mechanism with various actuator types, including pin plunger, hinge lever, and simulated roller lever. Designed for high durability with a mechanical life of at least 300,000 operations and an IP40 protection grade, it supports both AG and gold-plated contacts, ensuring reliable electrical performance in compact applications.
Panasonic AV4544 Miniature Snap Action Switch Specifications:
- Actuator Types: Pin plunger, hinge lever, simulated roller lever
- Contact Material: Ag plated, Au plated
- Protection Grade: IP40
- Mechanical Life: Minimum 300,000 operations
- Contact Ratings: 0.5A 30V DC (Ag contact), 0.1A 30V DC (Au contact)
- Operating Force: 0.98 N (pin plunger), 0.25 N (hinge lever), 0.29 N (roller lever)
- Pretravel: Max 2.8 mm (hinge lever type), Max 0.3 mm (pin plunger)
- Overtravel: Min 1.2 mm (hinge lever), Min 0.4 mm (pin plunger)
- Solder Terminal: Tightening torque not exceeding 0.098 N-m, installation within 5 seconds
- Operating Temperature: -25°C to +80°C
- Humidity Range: 5% to 85% RH
- Switching Frequency: Max 60 operations per minute
- Dimensions: Length varies with actuator type, typical sizes in the range of 4.0 to 5.8mm
- Stand-off: 2.4mm to 5.8mm depending on terminal configuration
- Shock Resistance: Pin plunger Min. 294 m/sec²
- Vibration Resistance: Pin plunger 10-55 Hz, Max 1 mm amplitude
