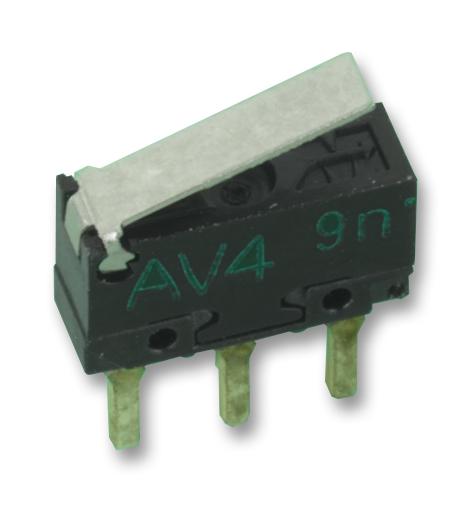

Panasonic AV4624 Miniature Switch
The AV4624 miniature switch features ultra-miniature size and lightweight design, ideal for compact electronic equipment, office automation, and dense PCB mounting. It offers high durability with a mechanical life of min. 300,000 operations and a protection grade of IP40. Equipped with Ag or Au plated contacts, it supports both straight and right-angle solder and PCB terminals. The switch provides reliable performance in electronic and mechanical switching applications, with various actuator types including pin plungers, hinge levers, and simulated roller levers, suitable for high-speed or low-speed cam systems.
Panasonic AV4624 Miniature Switch Specifications:
- Size: Ultra-miniature
- Mechanical life: Min. 300,000 operations
- Protection grade: IP40
- Contacts: Ag plated or Au plated
- Terminal types: Solder, PCB straight, and angle (right/left) terminals
- Actuators: Pin plunger, hinge lever, simulated roller lever
- Actuator force: 0.98N (pin plunger), 0.25N (hinge lever), 0.29N (simulated roller)
- Operating force: Max. 0.98N
- Pretravel: Max. 3mm for pin plunger, 2.4mm for hinge lever
- Overtravel: Min. 0.4mm
- Mounting: Soldering or PCB mounting, with hole options
- Operating temperature: -25°C to +80°C
- Protection grade: IP40
- RoHS compliant
Buy the Panasonic AV4624 – Reliable Miniature Switch for Industrial Applications
Purchase the Panasonic AV4624 miniature switch online today and ensure high performance in your electronic applications. This ultra-miniature, lightweight switch offers over 300,000 reliable operations, multiple actuator options, and corrosion-resistant contacts (Ag/Au plated). Suitable for dense PCB mounting and compact equipment, it guarantees durability and precision. Ideal for automation, office equipment, and small electronic devices, the AV4624 switch is RoHS compliant and designed for easy installation whether via solder or PCB mounting, ensuring versatile, dependable operation in demanding environments.
Buy Panasonic AV4624 now and experience unmatched reliability and performance in compact electronic switching solutions.
Frequently Asked Questions
Where can I buy Panasonic AV4624?
You can click on the BUY or RFQ button to purchase AV4624 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AV4624?
You can download the AV4624 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AV4624?
Panasonic
