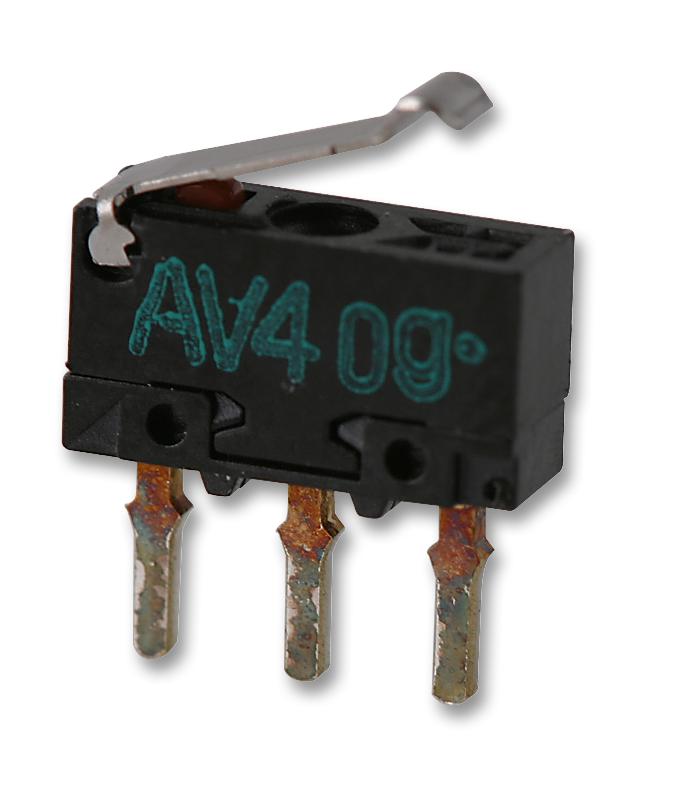

Panasonic AV464461 Miniature Switch
Miniature snap-action switch designed for high-precision, compact applications with a rated voltage of 30V DC, and rated current of 0.5A or 0.1A depending on contact type. Features include various actuator options such as pin plunger, hinge lever, and simulated roller lever, with IP40 protection grade. Suitable for small, lightweight electronic control environments like office automation, audio, and visual equipment. It offers excellent vibration and shock resistance, and long mechanical and electrical life, making it ideal for dense PCB mounting and automated machinery.
Panasonic AV464461 Miniature Switch Specifications:
- Applicable voltage: 30V DC
- Applicable current: 0.5A (resistive load) for Au contact, 0.1A for Au contact
- Mechanical life: Min. 3 x 10^6 operations
- Electrical life: Min. 2 x 10^5 operations (at rated load)
- Protection grade: IP40
- Operating temperature: -25°C to +80°C
- Contact resistance: Max. 200 mΩ
- Material: Silver and gold-plated contacts, black body and cap, red or black plunger
- Dimensions: Body length approx. 25 mm, actuation force: 0.25 N (hinge lever), 0.98 N (pin plunger)
- Mounting: Solder terminals with mounting holes, PC board terminals, or angle terminal options
- Vibration resistance: Pin plunger type 10-55Hz, 1mm amplitude
- Shock resistance: Min. 294 m/sec² for pin plunger type
- Pretravel: Max. 2.4 mm for hinge lever, Max. 0.3 mm for pin plunger
- Overtravel: Min. 0.4 mm
- Operating Force: Max. 0.98 N (pin plunger), 0.25 N (hinge lever)
Buy the Panasonic Series AV4 Limit Switch: AV464461
Order the Panasonic AV464461 miniature switch online today to ensure reliable, high-precision switching in your electronic control systems. Ideal for applications requiring compact size, long mechanical life, and excellent resistance to vibration and shock. With multiple actuator options including pin plunger, hinge lever, and simulated roller lever, this switch meets the demands of dense PCB mounting and automation equipment. Its durable construction and IP40 protection grade guarantee consistent performance and long service life. Don't miss out—purchase now for quality and dependable operation in your projects.
Get Panasonic AV464461 miniature switch today—built for precision and long-lasting durability in compact electronic applications.
