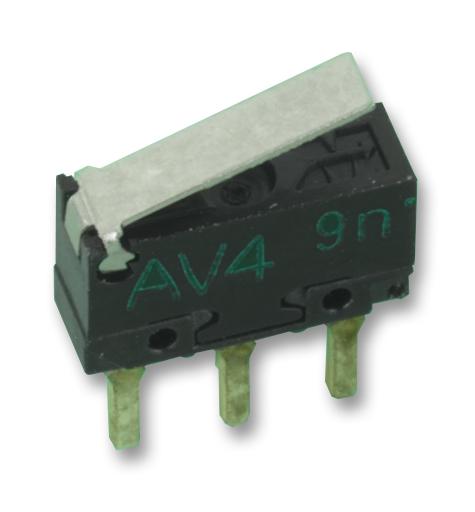

Panasonic AVT32243 Subminiature Switch
These subminiature switches feature reliable snap-action mechanism with excellent operating position accuracy and flux-resistant construction with molded terminals. Suitable for low-level circuits, they offer multiple contact configurations including AgNi alloy, Au-clad double, and triple layer contacts. Available with various actuators like pin plungers, hinge levers, simulated roller levers, and roller levers, they are designed for industrial applications requiring durable, precise switching. Their compact size, high reliability, and compatibility with different terminal types make them ideal for control panels, automation, and electronic device integration.
Panasonic AVT32243 Subminiature Switch Specifications:
- Contact Rating: 250V AC 3A, 30V DC 3A, 125V AC 3A, 0.5A (low-level load)
- Protection Grade: IP40
- Operating Force: 0.12N to 1.47N depending on actuator and contact type
- Contact Material: AgNi alloy, Au-clad (triple/double layer)
- Terminal Types: Solder, Self-standing PC board, .110 Quick-connect
- Operating Position: From OP min 6.80mm to max 12.4mm based on actuator
- Durability: Min. 100,000 cycles mechanical life, 20,000 cycles electrical life
- Temperature Range: -20°C to +85°C
- Protection Grade: IP40
- Mounting: Panel or PCB with screw or clip attachment, inline or cross-line terminals
- Dimensions: Typical size around 4.2mm diameter for plunger, lever length varies from 2.5mm to 28mm, height approximately 6.8mm
- Vibration Resistance: Max. 1msec contact bounce; Shock Resistance: Min. 294 m/s²
- Compliance: UL Listed, CE marked, IEC standards
Buy the Panasonic AVT32243 – Reliable Electronic Control for Industrial Applications
Order the Panasonic AVT32243 subminiature switch online today and benefit from high precision, flux-resistant construction, and a variety of contact and actuator options suitable for demanding industrial control and automation projects. Its compact size and excellent durability ensure consistent performance over many cycles, making it the perfect choice for control panels, electronic devices, and automation systems. Click now to secure this reliable switch and enhance your equipment’s operational efficiency and longevity.
Buy Panasonic AVT32243 now and experience unmatched reliability and performance in control and automation systems.
Frequently Asked Questions
Where can I buy Panasonic AVT32243?
You can click on the BUY or RFQ button to purchase AVT32243 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AVT32243?
You can download the AVT32243 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AVT32243?
Panasonic
