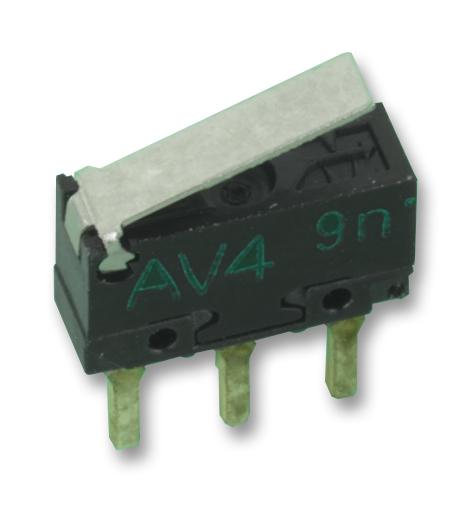

Panasonic AVT34223 Subminiature Control Switch
The AVT34223 is a subminiature, high-precision snap-action switch designed for low-level circuits, featuring flux-resistant construction, multiple contact materials including Au-clad and AgNi alloys, and various actuator options. It offers reliable performance with an IP40 protection grade, and can be mounted via solder, PC board, or quick-connect terminals. Suitable for automation and control applications, it ensures stable switching with minimal contact bounce, supporting high cycle life and environmental durability for industrial use.
Panasonic AVT34223 Subminiature Control Switch Specifications:
- Contact Rating: 250V AC 3A, 30V DC 3A, resistive and inductive loads
- Protection Grade: IP40
- Contact Materials: Au-clad, AgNi alloy, or CuNi alloy depending on configuration
- Operating Force: 0.12N to 1.47N depending on actuator type
- Pretravel: Max. 2.8mm
- Overtravel: Min. 0.4mm to 1.6mm depending on type
- Operating Position: OP varies with actuator, typically around 8.8mm
- Durability: Mechanical life up to 10 million cycles
- Mounting: Solder, self-standing PC, or .110 quick-connect terminals
- Temperature Range: -55°C to +85°C
- Vibration and shock resistance suitable for industrial environments
- Dimensions: Detailed CAD data available, typical hole spacing ~8.8mm
- Applicable for automation, control panels, furniture, and electronic controls
Buy the Buy Panasonic AVT34223 Subminiature Switch Part Number AVT34223 Online
Order the Panasonic AVT34223 subminiature control switch online today for high-precision, flux-resistant operation designed to withstand demanding industrial environments. This compact switch features multiple contact materials including Au-clad and AgNi alloys, supporting resistive and inductive loads up to 3A at 250V AC. With IP40 protection, versatile mounting options, and a long mechanical lifespan, it is ideal for automation, control panels, and electronic applications, ensuring stable performance with minimal bounce and high cycle durability.
Get Panasonic AVT34223 today—built for precision, durability, and reliable low-level circuit switching.
Frequently Asked Questions
Where can I buy Panasonic AVT34223?
You can click on the BUY or RFQ button to purchase AVT34223 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AVT34223?
You can download the AVT34223 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AVT34223?
Panasonic
