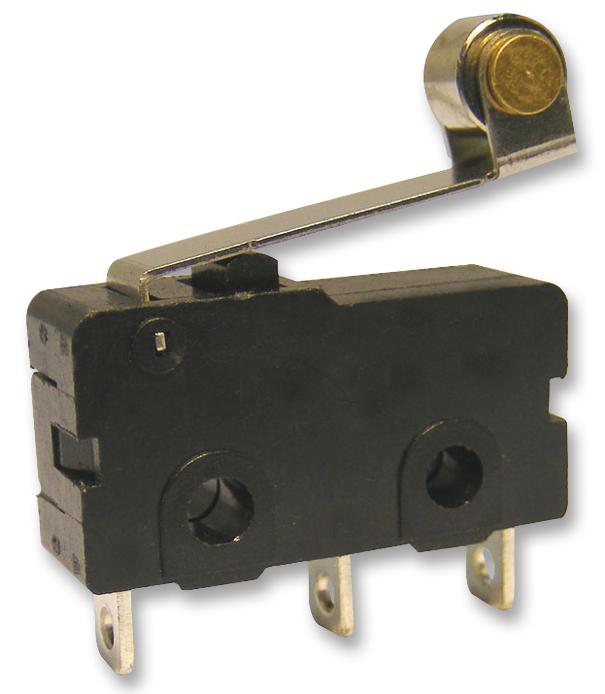

Panasonic AVT3452 Subminiature Switch
These compact, highly reliable subminiature switches feature flux-resistant construction with molded terminals, suitable for various industrial applications. Available in different contact materials such as AgNi alloy and Au-clad layers, they provide excellent operating position accuracy, long-term durability, and protection grades up to IP40. Designed for low-level circuit switching with multiple actuator options like pin plungers, hinge levers, and roller levers, these switches are ideal for precise electronic and industrial control tasks. Their construction ensures consistent performance, minimal contact resistance, and stability in harsh environments.
Panasonic AVT3452 Subminiature Switch Specifications:
- Contact rating: 125V AC 3A, 250V AC 3A, 30V DC 3A
- Protection grade: IP40
- Operating force range: 0.12N to 1.47N depending on model
- Contact materials: AgNi alloy, CuNi alloy + Au-clad layers, triple or double layers
- Actuators: Pin plunger, hinge lever, simulated roller, roller lever
- Terminal types: Solder, Self-standing PC board, .110 quick-connect
- Durability: Min. 5 x 10^5 mechanical cycles, Min. 2 x 10^5 electrical cycles
- Operating temperature: -25°C to +85°C
- Protection class: IP40
- Switch dimensions: Various, typical mounting hole distance ~8.8 mm, lever length varies
- Vibration resistance: Max. 1 mm displacement at 10-55 Hz
- Shock resistance: Max. 294 m/sec²
- Storage temperature: -20°C to +60°C
- Insulation resistance: Min. 100 MΩ at 500 V DC
- Dielectric strength: 1500 V AC for 1 minute
Buy the Panasonic AVT3452 – Reliable Micro Switch for Industrial Applications
Enhance your control system with Panasonic subminiature switches, featuring flux-resistant construction, multiple actuators, and high durability. Ideal for electronic circuits requiring precise switching, their compact design makes installation easy. Choose from various contact materials like AgNi alloy and Au-clad layers for low-level circuits, ensuring stable operation and excellent performance under harsh conditions. Purchase online today to benefit from quick delivery, reliable quality, and technical support for your industrial and electronic projects.
Buy Panasonic AVT3452 switch now and experience unmatched reliability and performance in your electronic control systems.
Frequently Asked Questions
Where can I buy Panasonic AVT3452?
You can click on the BUY or RFQ button to purchase AVT3452 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AVT3452?
You can download the AVT3452 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AVT3452?
Panasonic
