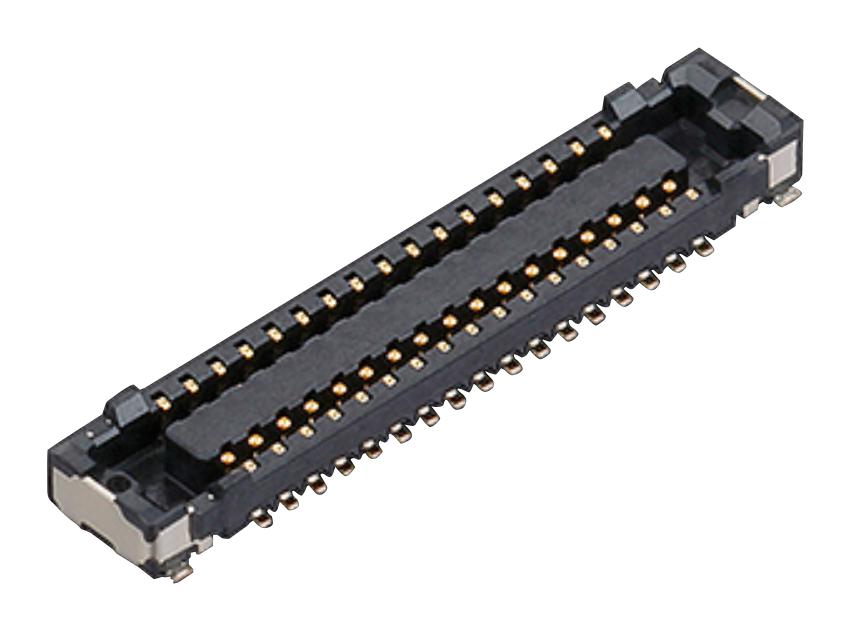

Panasonic AXG124144 Narrow Pitch Connectors
Narrow pitch connectors designed for board-to-FPC connections, featuring a slim width of 1.7 mm and low profile mated heights of 0.6 mm and 0.8 mm. Equipped with proprietary "TOUGH CONTACT" construction, these connectors ensure high contact reliability and durability in compact designs suitable for wearable devices, smartphones, and hearables. The connectors support high-density mounting with various pin counts, supply with gold-plated contact surfaces for excellent performance, and conform to strict electrical and mechanical standards for safety and long-term reliability.
Panasonic AXG124144 Narrow Pitch Connectors Specifications:
- Rated current: Max. 0.3A per contact (Total 5A)
- Rated voltage: 60V AC/DC
- Dielectric strength: 150V AC for 1 min
- Insulation resistance: Min. 1,000MΩ at 250V DC
- Contact resistance: Max. 90mΩ
- Number of pins: 6, 10, 12, 16, 20, 24, 34, 40, 44, 50, 54, 60
- Mated height: 0.6 mm or 0.8 mm
- Material: LOP resin, Copper alloy with Ni and Au plating
- Solder heat resistance: Peak temperature 260°C, Time within recommendation
- Reflow soldering: Temperature profile compliant with specified conditions
- Storage temperature: -55°C to +85°C
- Environmental standards: MIL-STD-202F, IEC60068-2-78, IEC60068-2-11
- Insertion/removal endurance: Up to 200 cycles
- Dimensions: Vary by pin count and type, detailed in datasheets
- Conforms to safety and electrical standards
Buy the Buy Panasonic Narrow Pitch Connectors Part Number AXG124144 Online
Order Panasonic AXG124144 connectors online today to ensure your project benefits from high contact reliability, compact design, and durable construction. These connectors are ideal for board-to-FPC connections in wearable devices, smartphones, and other compact electronics, providing excellent performance with gold-plated contacts and a low profile of just 0.6 mm or 0.8 mm height. Designed for easy handling, reliable soldering, and long-term durability, they meet strict safety and electrical standards, ensuring optimal operation in demanding environments.
Buy Panasonic AXG124144 now and experience unmatched reliability and performance in high-density, slim-profile connectors for FPC applications.
Frequently Asked Questions
Where can I buy Panasonic AXG124144?
You can click on the BUY or RFQ button to purchase AXG124144 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AXG124144?
You can download the AXG124144 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AXG124144?
Panasonic
