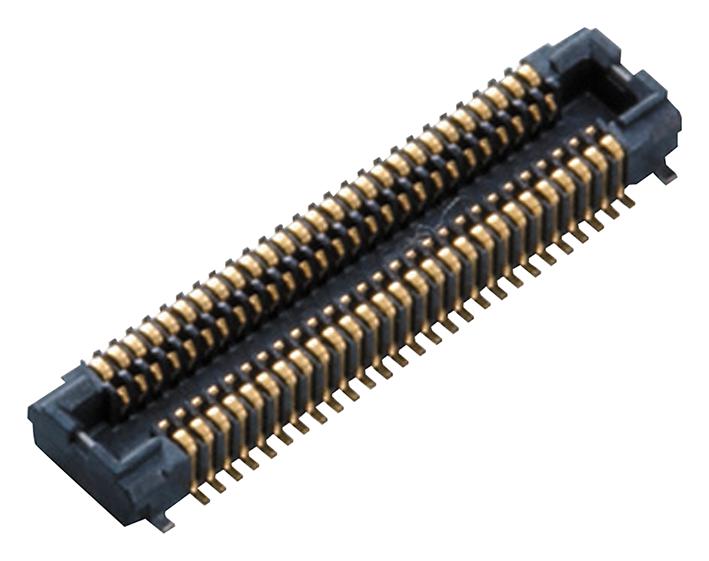

Panasonic AXT326124 Narrow Pitch Connector
Panasonic's AXT326124 connector is a compact and reliable solution for connecting boards and flexible printed circuits. Its 0.4mm pitch allows for high-density designs, while the 'TOUGH CONTACT' construction ensures excellent vibration resistance. The connector supports pattern wiring on the underside of the board, offering greater design flexibility. It is suitable for mobile devices and industrial equipment, and is compliant with high-speed transfer standards. Various pin counts and mated heights are available to meet diverse application requirements.
Panasonic AXT326124 Narrow Pitch Connector Specifications:
- Rated current: 0.3A/pin contact (Max. 5 A at total pin contacts)
- Rated voltage: 60V AC/DC
- Dielectric strength: 150V AC for 1 min.
- Insulation resistance: Min. 1,000MΩ (initial)
- Contact resistance: Max. 90mΩ
- Composite insertion force: Max. 0.981N/pin contact
- Composite removal force: Min. 0.0588N/pin contact
- Ambient temperature: –55 to +85°C
- Soldering heat resistance: Peak temperature: 260°C or less
- Storage temperature: –55 to +85°C (product only)
- Insertion and removal life: 50 times
- Material (Molded portion): LCP resin(UL94V-0)
- Material (Contact and Post): Copper alloy
- Surface treatment (Contact portion): Base: Ni plating, Surface: Au plating
- Surface treatment (Terminal portion): Base: Ni plating, Surface: Au plating
Buy the AXT326124 PANASONIC Narrow Pitch Connector | myMectronic
Securely purchase the Panasonic AXT326124 connector online for your industrial and commercial applications.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic AXT326124?
You can click on the BUY or RFQ button to purchase AXT326124 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AXT326124?
You can download the AXT326124 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AXT326124?
Panasonic
