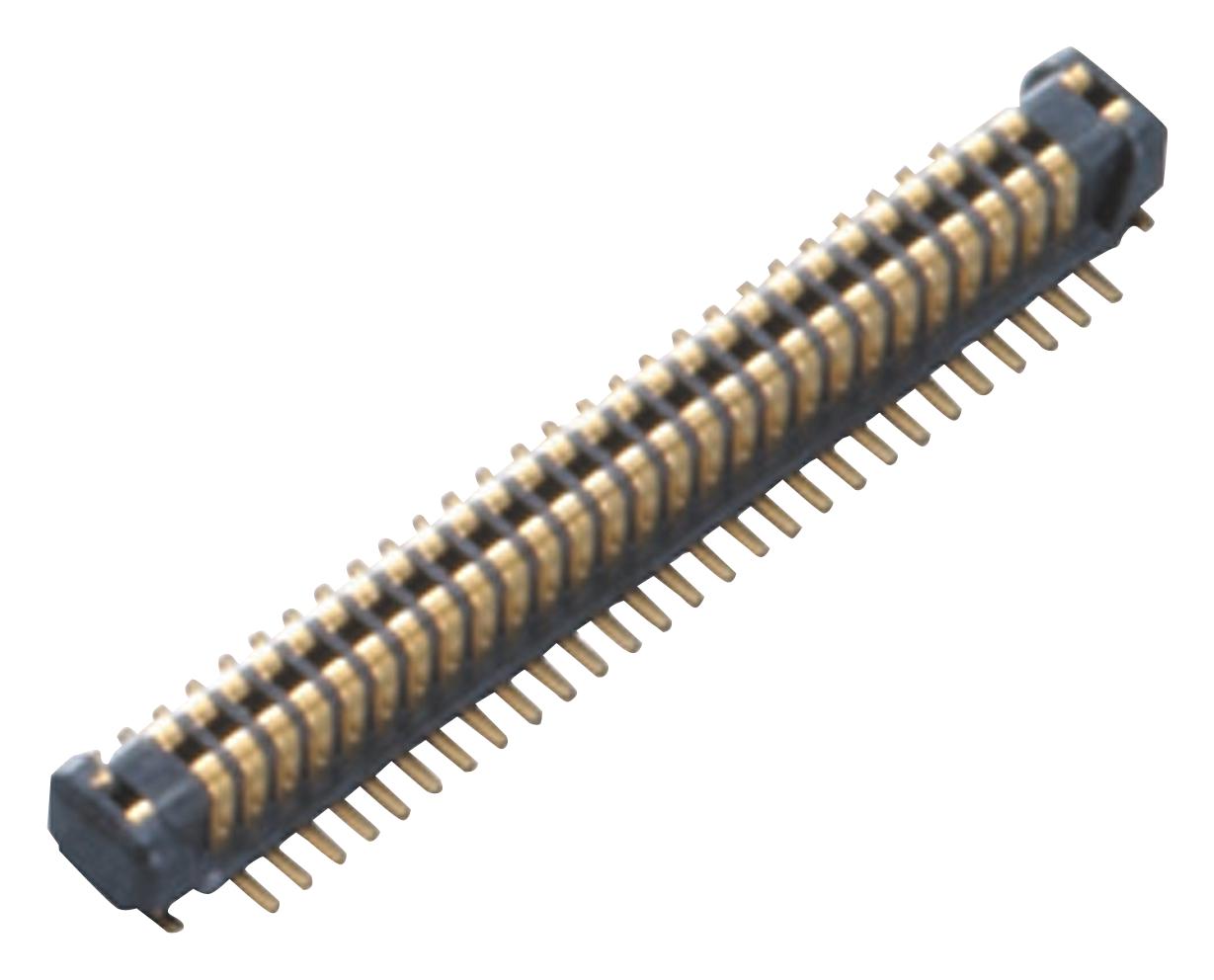

Panasonic AXT434124 Narrow Pitch Connector
The AXT434124 is a high-reliability, space-saving narrow pitch connector with a 0.4mm pitch, designed for board-to-board and board-to-FPC applications in mobile devices and industrial equipment. It features 'TOUGH CONTACT' construction for excellent vibration resistance, pattern wiring capability on the PC board underside, and support for high-speed transfer standards. The connector supports mated heights from 1.5 to 3.0 mm, offering durability for demanding electronic assemblies with 3,000 mating cycles, and is compatible with reflow and hand soldering processes, ensuring excellent electrical contact and mechanical stability.
Panasonic AXT434124 Narrow Pitch Connector Specifications:
- Rated current: 0.3A per contact (max. 5A total)
- Rated voltage: 60V AC/DC
- Dielectric strength: 150V AC for 1 min, no damage
- Insulation resistance: Min. 1,000MΩ at 250V DC
- Contact resistance: Max. 90mΩ
- Mated height: 1.5mm, 2.0mm, 2.5mm, 3.0mm
- Number of pins: 16 to 100, depending on model
- Material: LCP resin (UL94V-0), Copper alloy with Ni and Au plating
- Reflow soldering temperature: Max 260°C for 5 sec
- Soldering heat resistance: Meets MIL-STD-202F, method 107G
- Operational temperature: -55°C to +85°C, without icing or condensation
- Number of mating cycles: 3,000
- Dimensions: Refer to product-specific CAD data, typical pin pitch 0.4mm, compact footprint
- Design compliant with safety and environmental standards, includes embossed tape packaging
Buy the Panasonic AXT434124 – Reliable Connectors for Industrial Applications
Purchase the Panasonic AXT434124 connector today for your electronic projects. Engineered for high reliability and space efficiency, this 0.4mm pitch connector ensures excellent vibration resistance and long-term durability. Suitable for board-to-board and FPC applications, with support for 3,000 mating cycles, it guarantees secure connections in industrial and mobile device manufacturing. Easy to solder via reflow or hand soldering, this connector is essential for achieving dependable, high-speed data transfer standards, ensuring your device’s performance and longevity. Shop online now for fast delivery and bulk options.
Get Panasonic AXT434124 today—built for precision and long-lasting durability in demanding electronic environments.
Frequently Asked Questions
Where can I buy Panasonic AXT434124?
You can click on the BUY or RFQ button to purchase AXT434124 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part AXT434124?
You can download the AXT434124 datasheet or visit the Panasonic website for support.
Who is the manufacturer of AXT434124?
Panasonic
