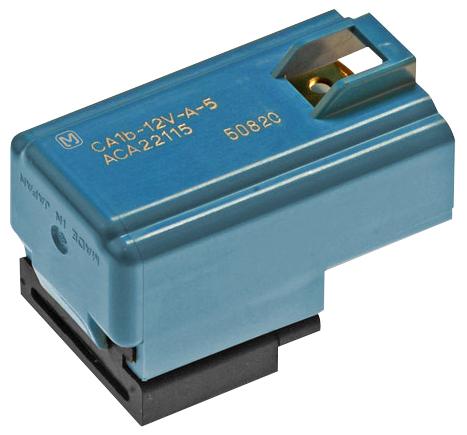

Panasonic CA1DC12VN automotive relay
This is a 12 VDC automotive relay with a single pole double throw (SPDT) contact configuration. It can handle a maximum current of 10 amps. The relay is mounted using screws and features a single side stable operating function, making it suitable for automotive electrical applications. Designed for reliable switching, it supports resistive loads and rapid switching times, ensuring consistent performance in vehicles and similar environments. The relay complies with safety and durability standards, providing a robust solution for automotive electrical systems.
Panasonic CA1DC12VN automotive relay Specifications:
- Coil Voltage: 12 VDC
- Contact Type: Single Pole Double Throw (SPDT)
- Maximum Switching Current: 10A
- Mounting Method: Screw mounting
- Contact Resistance (initial): 3 mΩ (typ.)
- Operation Time: Max. 10 ms at 20°C
- Release Time: Max. 10 ms at 20°C
- Insulation Resistance: Min. 10 MΩ at 500 V DC
- Dielectric Strength: 500 V rms for 1 min between contact and coil
- Ambient Temperature Range: -30°C to +80°C
- Waterproof Standard: JIS D0203S2
- Mass: 19 g
- Terminal Arrangement: Compatible with JIS D5011 B4-M1 connectors
- Durability: Expected electrical life of 105 operations at rated load
Buy the Panasonic CA1DC12VN – Reliable Automotive Power Relay for Industrial Applications
Purchase the Panasonic CA1DC12VN automotive relay online today and enjoy a reliable, high-performance switch designed specifically for automotive and industrial applications. This compact, screw-mounted relay features a 12 VDC coil, SPDT contacts, and a maximum current of 10A, making it ideal for vehicle electrical systems, agricultural equipment, and battery-powered devices. Its robust construction and JIS waterproof standard guarantee durability and safety in challenging environments. Order now to improve your project’s reliability with a proven and trusted automotive relay solution.
Order your Panasonic CA1DC12VN automotive relay today and ensure your vehicle’s electrical systems operate with dependable switching performance in demanding environments!
Frequently Asked Questions
Where can I buy Panasonic CA1DC12VN?
You can click on the BUY or RFQ button to purchase CA1DC12VN from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part CA1DC12VN?
You can download the CA1DC12VN datasheet or visit the Panasonic website for support.
Who is the manufacturer of CA1DC12VN?
Panasonic
