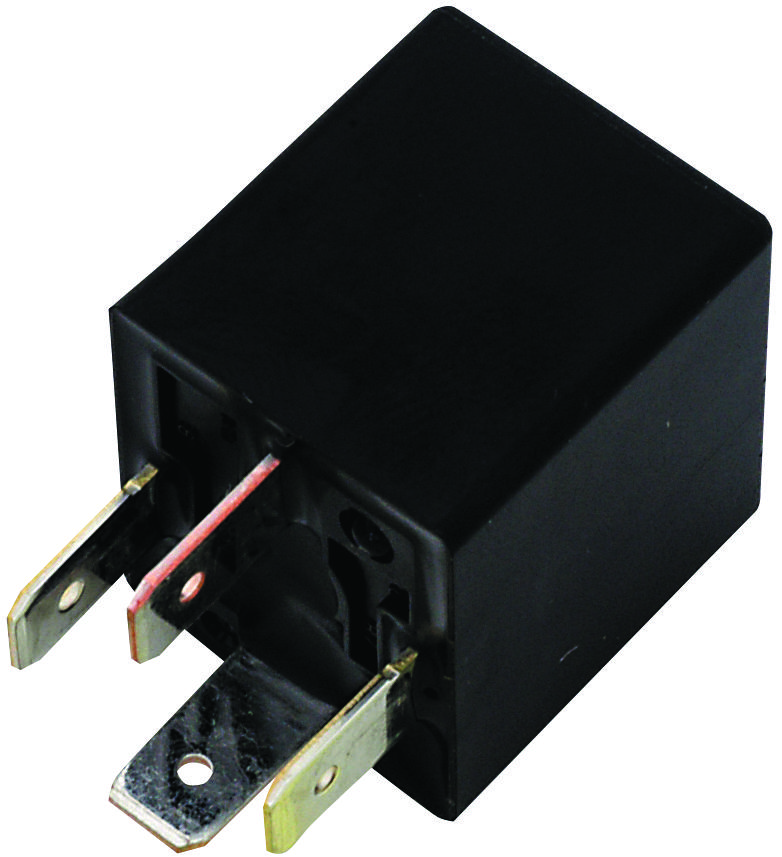

Panasonic CB112V Automotive Relay
This is a 12 VDC automotive relay featuring a single pole double throw (SPDT) contact configuration. It supports a maximum current of 40 amps and is designed for plug-in mounting. The relay operates with a single side stable function, making it suitable for various automotive electrical applications.
Panasonic CB112V Automotive Relay Specifications:
- Coil Voltage: 12V DC
- Contact Arrangement: Single pole double throw (SPDT)
- Maximum Switching Capacity: 40A at 14V DC
- Contact Resistance: Max. 15mΩ (initial)
- Contact Material: Silver alloy (Cadmium free)
- Nominal Operating Power: 1.4W (PC board type), 1.8W (standard types)
- Insulation Resistance: Min. 20 MΩ (at 500 V DC)
- Breakdown Voltage: 500 Vrms between open contacts and between contacts and coil
- Max. Switching Voltage: 28V DC
- Max. Continuous Carrying Current: 40A
- Operating Time: Max. 15ms (initial)
- Release Time: Max. 16ms (initial, without diode)
- Shock Resistance: Min. 200m/s²
- Vibration Resistance: Max. 44.1m/s²
- Ambient Temperature Range: -40°C to +85°C
- Dimensions: External dimensions approximately 26 x 34.7 x 40 mm
- Weight: Approx. 26g
Buy the Panasonic Series Automotive Relay: CB112V
Purchase the Panasonic automotive relay CB112V online today for dependable switching and high current capacity suitable for automotive and industrial applications. This relay ensures reliable performance with a compact design, supporting up to 40 amps, and features a SPDT contact configuration perfect for headlight, motor, air conditioning, and safety system controls. Enjoy fast, secure ordering, competitive prices, and quick delivery to keep your projects running smoothly and efficiently. Trust Panasonic quality for your electrical needs.
Get Panasonic CB112V today—built for automotive reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic CB112V?
You can click on the BUY or RFQ button to purchase CB112V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part CB112V?
You can download the CB112V datasheet or visit the Panasonic website for support.
Who is the manufacturer of CB112V?
Panasonic
