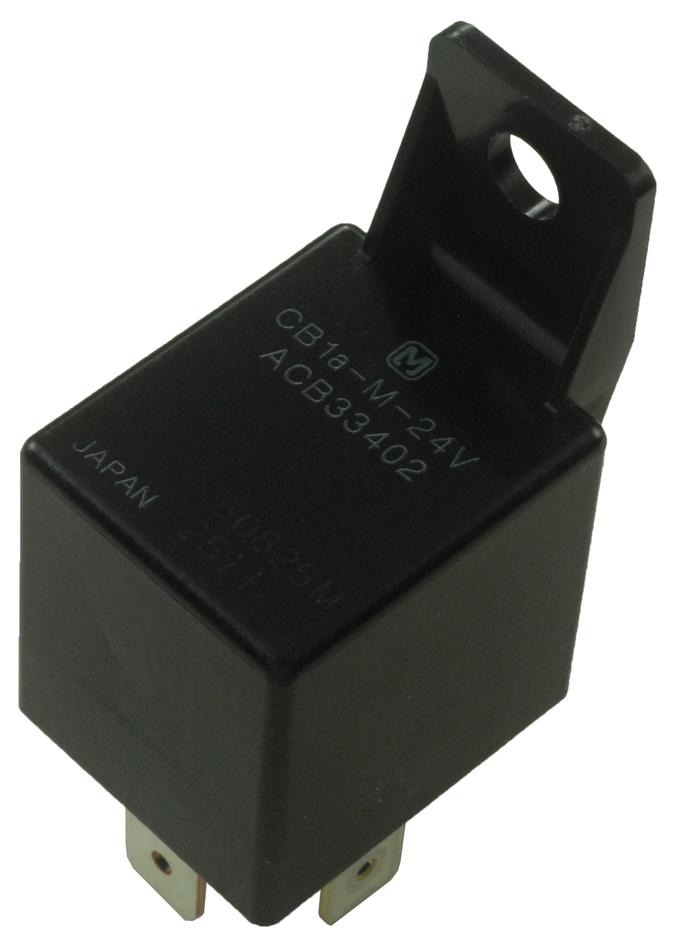

Panasonic CB1AM24V Automotive Relay
This automotive relay features a 24 VDC coil voltage, a single-pole single-throw normally open contact configuration, and is rated for 20 amps. It is designed for mounting with a bracket and operates as a single side stable relay, suitable for various automotive applications.
Panasonic CB1AM24V Automotive Relay Specifications:
- Coil Voltage: 24V DC
- Contact Configuration: Single-pole single-throw (SPST) normally open
- Rated Load: 20A at 28V DC
- Contact Resistance: Max. 15mΩ (initial)
- Contact Material: Ag alloy (Cadmium-free)
- Nominal Power: 1.8W (with resistor inside)
- Max Switching Voltage: 28V DC
- Dimensions: External dimensions approximately 40.2 x 40.2 mm, height 30 mm
- Mounting Type: Bracket mount
- Operating Temperature Range: -40°C to +85°C
- Insulation Resistance: Min. 20 MΩ at 500 V DC
- Durability: Mechanical life > 1,000,000 cycles
- Electrical Life: > 100,000 cycles at rated load
- Standards: RoHS compliant
- Weight: Approx. 28 g
Buy the Panasonic CB1AM24V – Reliable Automotive Relay for Industrial Applications
Secure your automotive electrical projects with the Panasonic CB1AM24V relay. Featuring a 24V coil, 20A switching capacity, and durable design, this relay ensures reliable performance in demanding environments. Its bracket mounting makes installation straightforward, perfect for automotive and industrial applications. Trust Panasonic’s quality for long-lasting, stable operation near engines or in adverse conditions. Purchase this high-capacity relay online today and ensure dependable control for headlights, motors, and other vehicle systems, enhancing safety and efficiency.
Buy Panasonic CB1AM24V now and experience unmatched reliability and performance in automotive electrical systems.
Frequently Asked Questions
Where can I buy Panasonic CB1AM24V?
You can click on the BUY or RFQ button to purchase CB1AM24V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part CB1AM24V?
You can download the CB1AM24V datasheet or visit the Panasonic website for support.
Who is the manufacturer of CB1AM24V?
Panasonic
