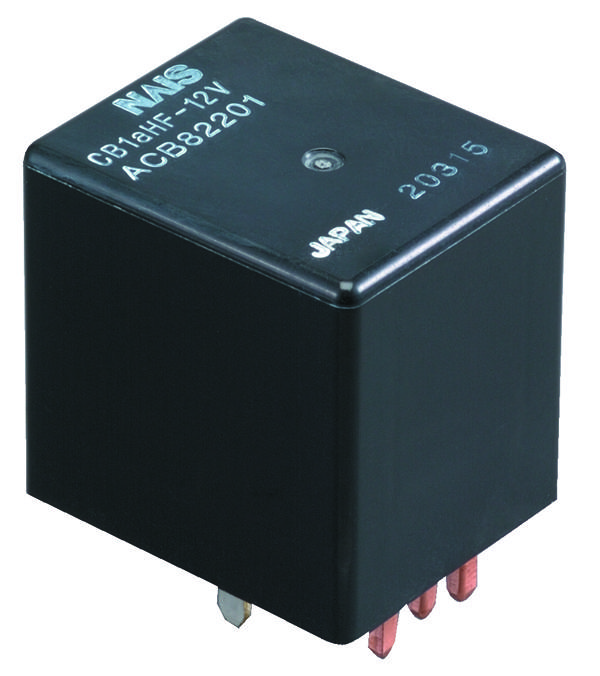

Panasonic CB1FP12V Automotive Relay
This 12 V DC automotive relay features a Single Pole Double Throw configuration rated for 40 amps, suitable for high-current switching in automotive and industrial applications. It is designed for PCB mounting with compact dimensions, offering reliable performance with high thermal resistance of 125°C. The relay's all solder-plated terminals ensure durability and corrosion resistance. Its sealed, heat-resistant, and sealed types make it versatile for adverse environments, ideal for controlling headlights, motor circuits, and air conditioning systems in vehicles and machinery. Built with a sturdy construction, the relay assures long service life in demanding conditions.
Panasonic CB1FP12V Automotive Relay Specifications:
- Coil Voltage: 12 V DC
- Contact Arrangement: SPDT (Single Pole Double Throw)
- Rated Load Current: 40A (14V DC, initial)
- Contact Resistance: Max. 2mΩ (initial)
- Contact Material: Ag alloy (Cadmium free)
- Switching Capacity: 40A 14V DC
- Max. Carrying Current: 40A at 85°C
- Operating Power: 1.4W (PC board type)
- Insulation Resistance: Min. 20 MΩ at 500V DC
- Dielectric Strength: 500 Vrms between open contacts and between contacts and coil
- Operate Time: Max. 15ms (excluding contact bounce)
- Release Time: Max. 15ms (without diode, initial)
- Shock Resistance: Min. 200 m/s²
- Vibration Resistance: Functional 40Hz to 500Hz, destructive 10Hz to 2,000Hz
- Ambient Temperature Range: -40°C to +125°C
- Dimensions: 26.0 mm x 17.9 mm x 22.0 mm
- Weight: Approx. 26 g
