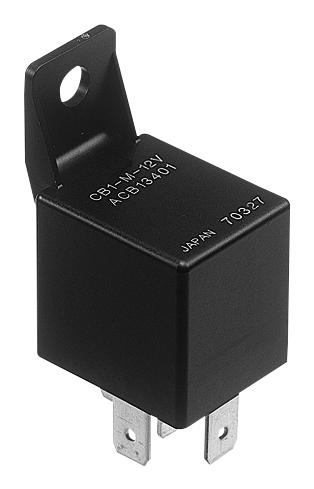

Panasonic CB1M12V Automotive Relay
This is a 12 V DC automotive relay with a Single Pole Double Throw (SPDT) contact configuration. It can handle up to 40 amps and features a bracket mounting for easy installation. The relay operates as a single side stable switch, making it ideal for automotive applications such as headlights, cell motors, and air conditioning systems. Its compact design, with dimensions suitable for space-saving installation, ensures reliable switching performance in demanding environments. The relay's robust construction includes cadmium-free silver alloy contacts meeting high current demands while ensuring durability.
Panasonic CB1M12V Automotive Relay Specifications:
- Operating Voltage: 12 V DC
- Contact Arrangement: Single Pole Double Throw (SPDT)
- Contact Material: Silver alloy (Cadmium free)
- Switching Capacity: 40A at 14V DC
- Rated Power: 1.4W (PC board type)
- Dimensions: 26.0 x 22.0 x 17 mm
- Mounting: Bracket type for easy installation
- Max Switching Power: 560W approximate for resistive load
- Insulation Resistance: Min. 20 MΩ at 500 V DC
- Drop-out Voltage: 3 to 7 V DC
- Pick-up Voltage: 6 to 14 V DC
- Contact Resistance (Initial): Max. 15 mΩ
- Operating Time: Max. 15 ms
- Standby Power: Approx. 1.4 W
- Temperature Range: -40°C to +85°C
- Construction: Sealed type available for adverse environments
Buy the Buy Panasonic Automotive Relay Part Number CB1M12V Online
Purchase the Panasonic CB1M12V automotive relay online today and experience high-capacity, reliable switching performance tailored for automotive electrical systems. This compact relay features a robust construction with a 40A switching capacity, making it suitable for headlights, air conditioning, and other high-demand automotive applications. Its bracket mounting allows straightforward installation, ensuring long-lasting durability and stable operation even in harsh environments. Order now to ensure your vehicle's electrical system is protected with a trustworthy relay designed for exceptional performance and longevity.
Get Panasonic CB1M12V today—built for reliable high-current switching in automotive environments.
Frequently Asked Questions
Where can I buy Panasonic CB1M12V?
You can click on the BUY or RFQ button to purchase CB1M12V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part CB1M12V?
You can download the CB1M12V datasheet or visit the Panasonic website for support.
Who is the manufacturer of CB1M12V?
Panasonic
