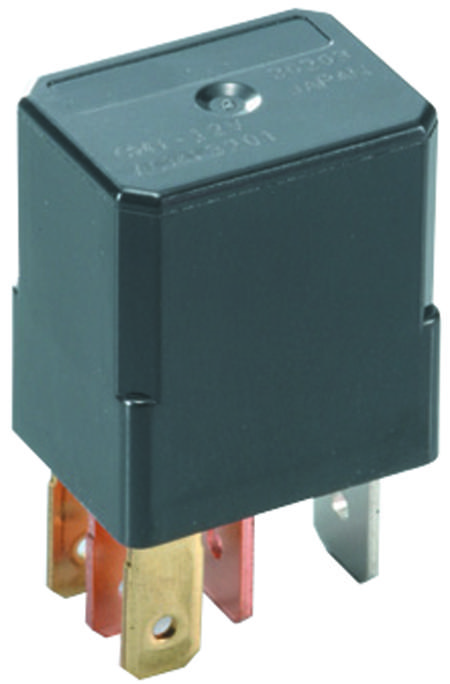

Panasonic CM112V Automotive Relay
This automotive relay features a 12 V DC coil voltage with a Single Pole Double Throw (SPDT) contact configuration. It supports a current of up to 35 amps, is designed for plug-in mounting, and operates with a single side stable switching function. It is sealed by epoxy resin, has compact dimensions, and includes diode options for coil surge protection. Ideal for controlling high-current loads such as fans, heaters, and motors, ensuring reliable switching performance in automotive applications with RoHS compliance.
Panasonic CM112V Automotive Relay Specifications:
- Coil Voltage: 12 V DC
- Contact Arrangement: Single Pole Double Throw (SPDT)
- Maximum Current: 35A at 14V DC
- Contact Resistance: Typ 2 mΩ
- Insulation Resistance: Min 20 MΩ at 500 V DC
- Drop-out Voltage: 6 V DC (nominal)
- Pick-up Voltage: 12 V coil, typically 307 V
- Operate Time: Max 10 ms
- Release Time: Max 10 ms
- Shock Resistance: Min 200 m/s²
- Vibration Resistance: Min 44.1 m/s²
- Ambient Temperature Range: -40°C to +85°C
- Sealed by epoxy resin for environmental protection
- Dimensions: Approx. 22 mm x 15 mm x 22 mm (LxWxH)
- Mounting: Plug-in or PC board
- RoHS Directive Compliant
Buy the Panasonic Series Automotive Relay: CM112V
Purchase the Panasonic Series automotive relay CM112V online today to secure a dependable 12 V DC control solution. This high-current relay features a 35A load capacity, robust epoxy sealing for durability, and versatile mounting options suitable for automotive control systems. Its compact size allows easy integration into tight spaces, making it ideal for controlling fans, heaters, motors, and other electrical loads in vehicles. Ensure your automotive projects perform reliably with this high-quality relay, available for quick online ordering and delivery.
Order your Panasonic Series Automotive Relay CM112V today and ensure reliable high-current switching for automotive projects.
Frequently Asked Questions
Where can I buy Panasonic CM112V?
You can click on the BUY or RFQ button to purchase CM112V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part CM112V?
You can download the CM112V datasheet or visit the Panasonic website for support.
Who is the manufacturer of CM112V?
Panasonic
