Panasonic DRC2123J0L NPN Epitaxial Transistor
The Panasonic DRC2123J0L is a silicon NPN epitaxial planar transistor with built-in resistor, ideal for digital circuits. It features low collector-emitter saturation voltage, halogen-free, and RoHS compliance, with a compact TO-236AA/SOT-23 package. Designed for reliable performance in various electronic applications, it offers high current capacity, low voltage levels, and robust temperature tolerance from -55°C to +150°C. Its internal resistance and electrical characteristics make it suitable for efficient switching and amplification in modern electronic designs.
Panasonic DRC2123J0L NPN Epitaxial Transistor Specifications:
- Collector current: 100 mA
- Total dissipation: 200 mW
- Package: TO-236AA/SOT-23
- Operating temperature range: -55°C to +150°C
- Collector-emitter voltage: 50 V
- Collector-base voltage: 50 V
- Resistance R1: 2.2 kΩ
- Resistance R2: 47 kΩ
- Marking Symbol: N4 14
- Electrical characteristics measured at 25°C
- Resistance ratio R1/R2: 0.037
- Halogen-free / RoHS compliant

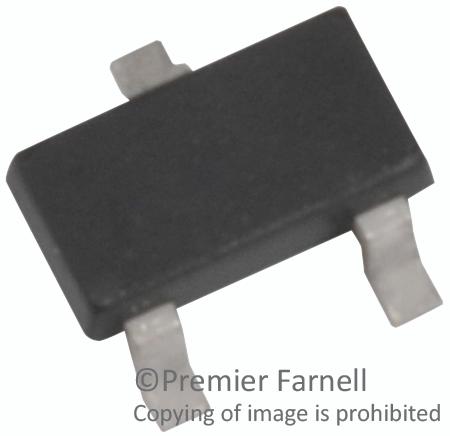

Buy the Panasonic Series Mini3-G3-B Transistor: DRC2123J0L
Order the Panasonic DRC2123J0L transistor online today to ensure your electronic projects benefit from high performance, low saturation voltage, and RoHS compliance. This compact NPN transistor with built-in resistor offers excellent reliability, making it ideal for digital circuits and switching applications. With a wide operating temperature range from -55°C to +150°C, it guarantees stability and efficiency. Secure your supply now and enjoy fast delivery for your design needs, ensuring seamless integration into your electronic systems.
Buy Panasonic DRC2123J0L now and experience unmatched reliability and performance with this compact transistor suitable for digital circuit applications.
Frequently Asked Questions
Where can I buy Panasonic DRC2123J0L?
You can click on the BUY or RFQ button to purchase DRC2123J0L from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part DRC2123J0L?
You can download the DRC2123J0L datasheet or visit the Panasonic website for support.
Who is the manufacturer of DRC2123J0L?
Panasonic
