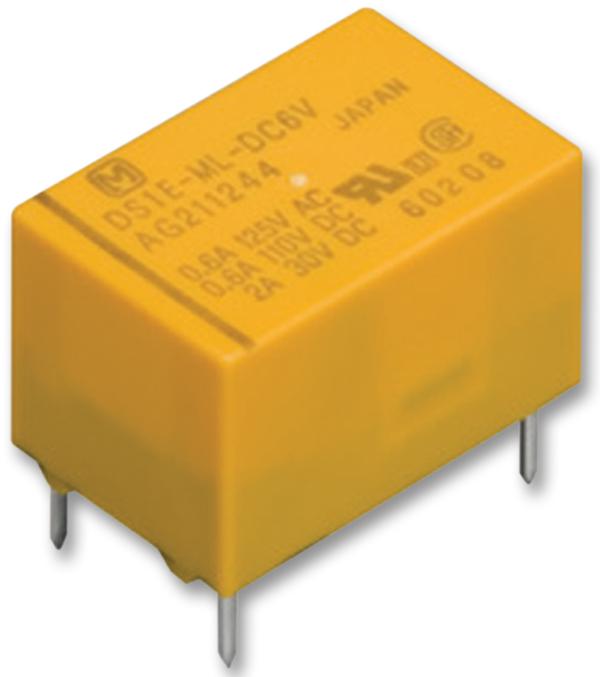

Panasonic DS1EMDC12V Signal Relay
This signal relay features a 12 V DC coil voltage, a single-pole double-throw contact configuration, and a maximum current rating of 2 Amps. It is designed for mounting on a printed circuit board (PCB) and operates as a single-side stable relay, suitable for various switching applications. The relay is compact with external dimensions of approximately 9.8 mm height and 9.9 mm width, sealed with epoxy resin for use in harsh environments. With gold-clad twin contacts and polarized magnetic circuits, it provides high reliability, shock resistance, and vibration tolerance, making it ideal for telecommunications, industrial, and office equipment.
Panasonic DS1EMDC12V Signal Relay Specifications:
- Coil Voltage: 12V DC
- Contact Arrangement: SPDT (Form C)
- Maximum Current: 2 Amps
- Contact Material: Ag+Au clad
- Contact Resistance: Max. 50 mΩ (at 6 VDC, 1A)
- Nominal Switching Capacity: 2A30V DC
- Maximum Switching Power: 60 W, 125 VA
- Maximum Switching Voltage: 220V DC, 250V AC
- Rating: Max. Carrying Current 3A
- Initial Contact Resistance: Max. 50 mΩ
- Insulation Resistance: 1,000 MΩ at 500V DC
- Breakdown Voltage: 7,500 V (initial)
- Operate Time: Max. 10 ms
- Release Time: Max. 5 ms
- Ambient Temperature: -40°C to +70°C
- Dimensions: Height 9.8 mm, Width 9.9 mm, suitable for PCB mounting
- Build Material: Epoxy resin sealed, gold-clad contacts
- Shock Resistance: Min. 980 m/s²
- Vibration Resistance: 10-55 Hz at double amplitude of 5 mm
