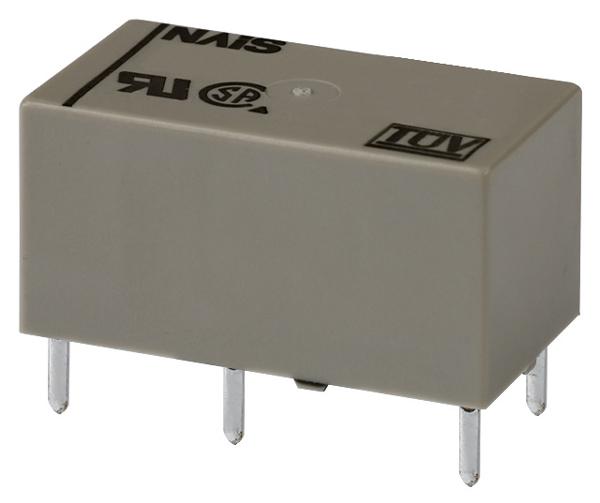

Panasonic DSP1ADC12V Power Relay
The DSP1A-DC12V is a miniature power relay featuring a single-pole, normally open AgSnO2 contact, suitable for industrial and office electronic devices. Operating with a single-sided stable mechanism and standard polarity, it offers high switching capacity, voltage, and sensitivity. It withstands breakdown voltages of 1000V rms between open contacts for 1 minute, an insulation resistance of 1000 MΩ at 500V DC, and operates at a maximum speed of 30 cycles/sec at rated load. Ideal for printers, data recorders, NC machines, and controllers. It supports a temperature rise up to 55°C and complies with safety standards.
Panasonic DSP1ADC12V Power Relay Specifications:
- Arrangement: 1 Form A (Single-pole, normally open)
- Contact Material: AgSnO2
- Contact Resistance (Initial): Max. 30 mΩ (Voltage drop 6 V DC, 1A)
- Nominal Switching Capacity: 5A at 250V AC, 30V DC
- Max. Switching Power: 2000 VA, 150 W
- Insulation Resistance: Min. 1000 MΩ at 500V DC
- Breakdown Voltage: 1000 V rms between open contacts for 1 min., 3000 V rms between contact and coil
- Operating Speed: Max. 30 cycles/sec
- Coil Voltage: 12V DC
- Operating Power: 300 mW
- Temperature Rise: Max. 55°C
- Duration of Breakdown Voltage Test: 1 minute
- Coil Resistance: Approximately 1920 Ω at 20°C
- Max. Operating Temperature: 55°C
- Certifications: RoHS, UL, CSA, TUV
- Dimensions: External dimensions approx. 11.00 mm x 10.00 mm x 10.50 mm
Buy the Panasonic DSP1A-DC12V – Reliable Power Relay for Industrial Applications
Purchase the Panasonic DSP1A-DC12V online today for your industrial electronics and control needs. Designed for reliability, high capacity, and safety compliance, this relay ensures efficient switching for printers, NC machines, temperature controllers, and more. Its quick operation, voltage tolerance, and rugged construction make it perfect for demanding applications. Order now to ensure timely delivery and optimal performance in your manufacturing or automation systems. Experience quality and precision with Panasonic relays tailored for industry-specific demands.
Get Panasonic DSP1A-DC12V today—built for precision and long-lasting durability in industrial and control systems.
Frequently Asked Questions
Where can I buy Panasonic DSP1ADC12V?
You can click on the BUY or RFQ button to purchase DSP1ADC12V from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part DSP1ADC12V?
You can download the DSP1ADC12V datasheet or visit the Panasonic website for support.
Who is the manufacturer of DSP1ADC12V?
Panasonic
