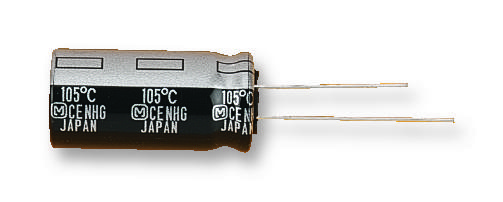

Panasonic ECA1AHG471B Aluminum Electrolytic Capacitors
Panasonic aluminum electrolytic capacitors (radial lead type) offering high endurance at 105°C for 2000 hours with RoHS compliance. Suitable for power applications, these capacitors feature a wide capacitance range from 2.2 UF to 330 UF and voltage ratings up to 450 VDC. Designed for reliable operation in diverse environments, they include features such as low leakage current, stable capacitance, and appropriate ripple current handling. Their robust construction ensures durability and consistent performance over long operational lifespans, fulfilling industrial, power supply, and electronic circuit needs.
Panasonic ECA1AHG471B Aluminum Electrolytic Capacitors Specifications:
- Category temperature range: -55°C to +105°C
- Rated voltage range: 6.3 V.DC to 450 V.DC
- Capacitance range: 2.2 UF to 330 UF
- Capacitance tolerance: +20% (120 Hz/+20 °C)
- Leakage current: |< 0.06 CV +10 (UA) After 2 minutes
- Endurance: 2000 hours at +105°C with rated voltage, capacitance within +20%, leakage current within initial limits
- Shelf life: Capacitors meet reliability limits after 1000 hours at +105°C with no voltage, then stabilized at +20°C
- Case sizes: Varying diameters from 5 mm to 35.5 mm, lengths from 18 mm to 75 mm
- Lead lengths: Generally 20 mm to 35.5 mm, with taping options available for automated assembly
- RoHS compliant: Yes
Buy the Panasonic Series NHG Aluminum Electrolytic Capacitors: ECA1AHG471B
Purchase Panasonic aluminum electrolytic capacitors online for reliable power management, high endurance at 105°C, wide voltage and capacitance options, RoHS compliance, and durable design suitable for industrial and electronic circuit applications. These high-quality capacitors deliver excellent stability, low leakage current, and long operational lifespan. Ideal for power supplies, automation, and electronic devices, they ensure your projects operate smoothly and efficiently. Buy now for dependable performance and fast delivery, backed by trusted quality standards.
Get Panasonic NHG Series ECA1AHG471B today—built for precision and long-lasting durability in high-temperature power applications.
Frequently Asked Questions
Where can I buy Panasonic ECA1AHG471B?
You can click on the BUY or RFQ button to purchase ECA1AHG471B from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECA1AHG471B?
You can download the ECA1AHG471B datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECA1AHG471B?
Panasonic
