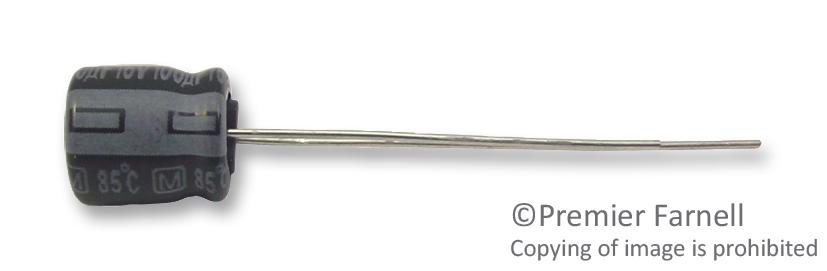

Panasonic ECA1EM220 Aluminum Electrolytic Capacitor
The Panasonic ECA-1EM220 is a radial lead type aluminum electrolytic capacitor designed for a wide range of industrial applications. It boasts an endurance rating of 85°C for 2000 hours, ensuring long-term reliability. The capacitor is also RoHS directive compliant, meeting environmental standards. With a capacitance range from 2.2 μF to 22000 μF and voltage ratings from 6.3 V.DC to 450 V.DC, it offers versatility for diverse circuit designs. Its compact size and radial lead configuration make it suitable for space-constrained applications.
Panasonic ECA1EM220 Aluminum Electrolytic Capacitor Specifications:
- Series: M Type
- Endurance: 85 °C 2000 h
- Capacitance Range: 2.2 μF to 22000 μF
- Rated W.V. Range: 6.3 V.DC to 100 V.DC
- Capacitance Tolerance: ±20 % (120 Hz/+20 °C)
- DC Leakage Current: <0.06 CV +10 (μA) After 2 minutes
- tan d: Please see the attached standard products list
- Correction factor (50, 60 Hz): 0.70
- Correction factor (120 Hz): 1.30
- Correction factor (1 k Hz): 1.70
- Body Dia. (0D): 5, 6.3, 8, 10, 12.5, 16, 18 mm
- Lead Dia. (0d): 0.5, 0.6, 0.8 mm
- Lead space (F): 2.0, 2.5, 3.5, 5.0, 7.5 mm
- Lead Length Straight: 2.0, 2.5, 3.5, 5.0, 7.5 mm
Buy the ECA-1EM220 PANASONIC Aluminum Electrolytic Capacitor | myMectronic
Purchase the Panasonic ECA-1EM220 Aluminum Electrolytic Capacitor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Panasonic ECA1EM220?
You can click on the BUY or RFQ button to purchase ECA1EM220 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECA1EM220?
You can download the ECA1EM220 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECA1EM220?
Panasonic
