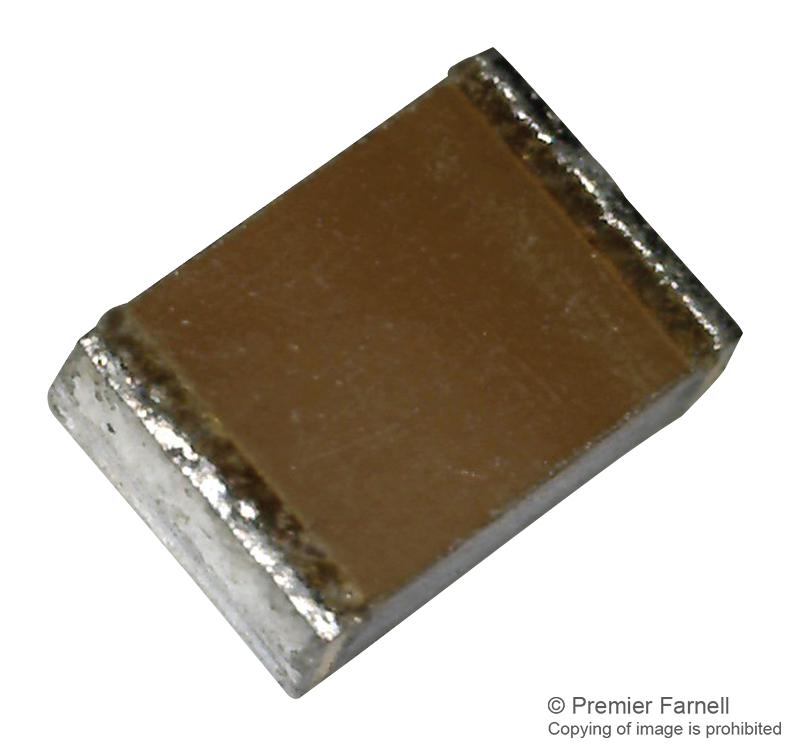

Panasonic ECHU1C272JX5 Stacked Metallized PPS Film Capacitor
The ECHU series consists of stacked metallized PPS film chip capacitors designed for high reliability and stability in various electronic applications. They feature compact dimensions starting from 1.6 mm x 0.8 mm, suitable for reflow soldering, and RoHS compliance. These film capacitors are ideal for time constant circuits, filtering, oscillation, resonance, and audio applications. They operate within a temperature range of -55°C to +125°C, with rated voltage options of 16V and 50V, and exhibit low tolerances of +2% or +5%. Rugged construction ensures suitability for demanding environments and precise electronic functions.
Panasonic ECHU1C272JX5 Stacked Metallized PPS Film Capacitor Specifications:
- Category temperature range: -55°C to +125°C
- Rated voltage: 16V or 50V DC
- Capacitance tolerance: +2% (G), +5% (J)
- Dimensions: minimum 1.6 mm x 0.8 mm
- Reflow soldering temperature: max 260°C for 95 sec
- Dielectric: Stacked metallized PPS film
- RoHS compliant
- Operating humidity: 85 CC, 85% RH for 500 hours
- Water resistance: withstands W.V. x 1.0 for 500 hours
- Suitable for high frequency, filtering, resonance, audio
- Small size with simple mold-less construction
Buy the Buy Panasonic ECHU SeriesCapacitors Part Number ECHU1C272JX5 Online
Enhance your electronic designs with Panasonic’s high-quality stacked metallized PPS film capacitors. These compact components offer excellent stability, low loss, and reliability for filtering, resonance, and audio applications. RoHS compliant and capable of withstanding high temperatures up to 125°C, they are suitable for reflow soldering and reliable operation in demanding environments. Available in small dimensions starting from 1.6 mm x 0.8 mm, they are perfect for space-constrained circuits needing consistent performance and durability for robust electronics.
Order your Panasonic Series ECHU1C272JX5 today and give your electronic projects the dependable quality they deserve, with reliable high-frequency filtering performance.
Frequently Asked Questions
Where can I buy Panasonic ECHU1C272JX5?
You can click on the BUY or RFQ button to purchase ECHU1C272JX5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECHU1C272JX5?
You can download the ECHU1C272JX5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECHU1C272JX5?
Panasonic
