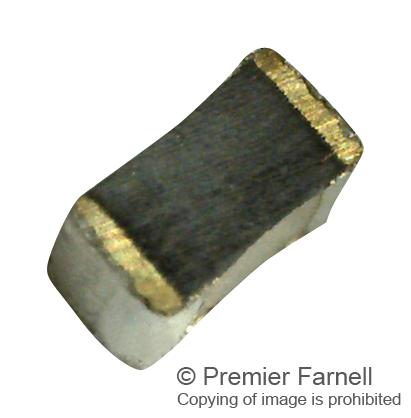

Panasonic ECHU1C273GX5 Stacked Metallized PPS Film Capacitor
The Stacked Metallized PPS Film Chip Capacitor from Panasonic's industry-grade plastic film capacitors series offers small size, reliable dielectric strength, and RoHS compliance. Designed for applications such as filtering, oscillation, resonance, and audio circuits, it features simple mold-less construction with a minimum size of 1.6 mm x 0.8 mm. Capable of withstanding reflow soldering temperatures up to 260°C, it provides stable performance across a temperature range of -55°C to +125°C, with rated voltages of 16V or 50V and precise capacitance tolerances. Ideal for high-frequency and precision electronic circuits.
Panasonic ECHU1C273GX5 Stacked Metallized PPS Film Capacitor Specifications:
- Dielectric: Stacked metallized PPS film
- Size: 1.6 mm x 0.8 mm (minimum size)
- Rated Voltage: 16V or 50V DC
- Capacitance: ranges from 0.00010 uF to 0.22 uF depending on model
- Capacitance Tolerance: +2% (G), +5% (J)
- Temperature Range: -55°C to +125°C
- Reflow Soldering: Max 260°C for 95 sec
- RoHS compliant
- Application: Filtering, oscillation, resonance, audio circuits
- Physical: Small size for space-constrained applications
- Reliability: Suitable for reflow soldering with stable electrical characteristics
Buy the Buy Panasonic Stacked Metallized PPS Film Chip Capacitor Part Number ECHU1C273GX5 Online
Order Panasonic's high-quality Stacked Metallized PPS Film Capacitor online now to enhance your electronic circuits with reliable filtering, resonance, and audio performance. This compact, RoHS-compliant component features stable operation from -55°C to +125°C, supports reflow soldering up to 260°C, and offers precise capacitance and tolerance suited for high-frequency applications. Ensure your designs meet demanding reliability standards by purchasing online today—fast, secure, and convenient for rapid prototyping and production needs.
Get Panasonic ECHU1C273GX5 today—built for high-frequency filtering and long-lasting durability.
Frequently Asked Questions
Where can I buy Panasonic ECHU1C273GX5?
You can click on the BUY or RFQ button to purchase ECHU1C273GX5 from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECHU1C273GX5?
You can download the ECHU1C273GX5 datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECHU1C273GX5?
Panasonic
