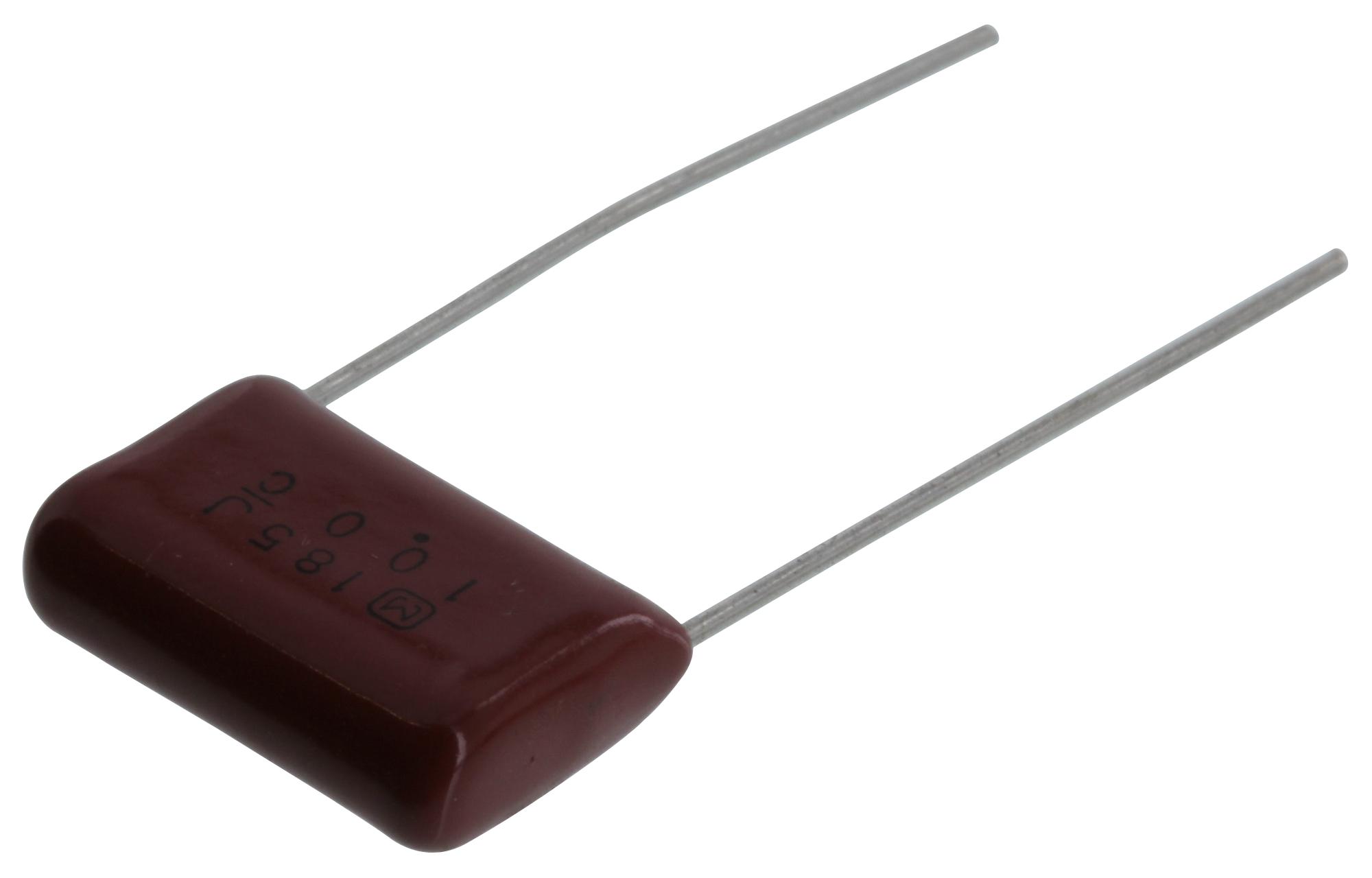

Panasonic ECQE1185JF Metallized Polyester Capacitor
Metallized Polyester Film Capacitor with non-inductive construction, flame retardant epoxy coating, and self-healing properties. Suitable for general purpose applications, these capacitors offer excellent electrical characteristics, moisture resistance at 85°C and 85% RH for 500 hours, and comply with ROHS directives. Rated for voltages from 125 VAC to 630 VDC, with capacitance ranges from 0.010 to 10 μF, making them ideal for noise suppression and across-the-line use in electronic circuits, ensuring reliable performance under various environmental conditions.
Panasonic ECQE1185JF Metallized Polyester Capacitor Specifications:
- Rated voltage: 125 VAC, 250 VAC, 400 VDC, 630 VDC
- Capacitance range: 0.010 to 10 μF
- Capacitance tolerance: +5% (J), +10% (K)
- Temperature range: -40°C to +105°C
- Moisture resistance: 85°C, 85% RH for 500 hours
- Dielectric: Metallized Polyester film
- Construction: Non-inductive, flame retardant epoxy coating
- Dissipation factor: ≤ 1.0% at 20°C, 1 kHz
- Insulation resistance: ≥ 9000 MΩ at 250 VDC
- Voltage withstand: 1500 VAC for 60s between terminals
- Certifications: ROHS compliant
- Self-healing property ensures reliability in operation
Buy the Buy Panasonic Metallized Polyester Capacitor Part Number ECQE1185JF Online
Purchase your Panasonic Metallized Polyester Capacitor ECQE1185JF online today for dependable performance in noise suppression and general electronic applications. With excellent moisture resistance, flame retardant epoxy coating, and self-healing properties, this high-quality capacitor ensures long-term reliability. Suitable for use in AC and DC circuits from 125 VAC to 630 VDC, it offers capacitance from 0.010 to 10 μF with tight tolerance, wide temperature range, and robust insulation resistance. Elevate your manufacturing or repair projects with our premium, ROHS-compliant capacitors available for quick delivery and secure online checkout.
Order your Panasonic Metallized Polyester Capacitor ECQE1185JF today and enhance your electronic projects with reliable, high-performance noise suppression components.
Frequently Asked Questions
Where can I buy Panasonic ECQE1185JF?
You can click on the BUY or RFQ button to purchase ECQE1185JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE1185JF?
You can download the ECQE1185JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE1185JF?
Panasonic
