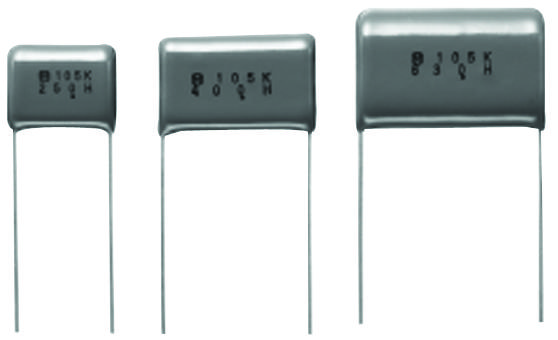

Panasonic ECQE1685KF High-Voltage Film Capacitor
The ECQE1685KF is a high voltage film capacitor suitable for industrial noise suppression and high-frequency applications. Made with metallized polyester film, it features a flame retardant epoxy resin coating, self-healing properties, and excellent electrical characteristics. Operating within a temperature range of -40°C to +105°C, it supports rated voltages up to 1250V DC and 125V AC, with capacitance values from 0.010 µF to 10.0 µF. Designed for reliable performance in electronic circuits, it has various mounting and packaging options ensuring safe and efficient installation in industrial environments.
Panasonic ECQE1685KF High-Voltage Film Capacitor Specifications:
- Rated voltage: 1250 V DC, 125 V AC
- Capacitance range: 0.010 µF to 10.0 µF (E12)
- Temperature range: -40°C to +105°C
- Dielectric material: Metallized Polyester
- Insulation resistance (IR): > 10,000 MΩ at 20°C, 500 V DC, 60 s
- Capacitance tolerance: +5% (J), +10% (K)
- Dissipation factor: tan δ ≤ 1.0% at 1 kHz
- Flame retardant epoxy resin coating (94V-0)
- Self-healing property for increased reliability
- Physical dimensions vary per capacitance and voltage ratings, with specific sizes for each model
- Mounting options include straight, crimped, and taped leads, suitable for automatic insertion
Buy the Panasonic ECQE1685KF – Reliable High-Voltage Film Capacitor for Industrial Applications
Order Panasonic ECQE1685KF online today—engineered for industrial noise filtering and high-frequency circuits. Featuring metallized polyester film, flame retardant epoxy coating, and self-healing properties, this capacitor ensures reliable, safe operation across a wide temperature range. Perfect for equipment requiring high voltage stability, it offers easy mounting options, excellent electrical characteristics, and RoHS compliance. Invest in durability and performance—buy Panasonic ECQE1685KF now for secure, efficient electronic solutions.
Get Panasonic ECQE1685KF today—built for precision, safety, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Panasonic ECQE1685KF?
You can click on the BUY or RFQ button to purchase ECQE1685KF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE1685KF?
You can download the ECQE1685KF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE1685KF?
Panasonic
