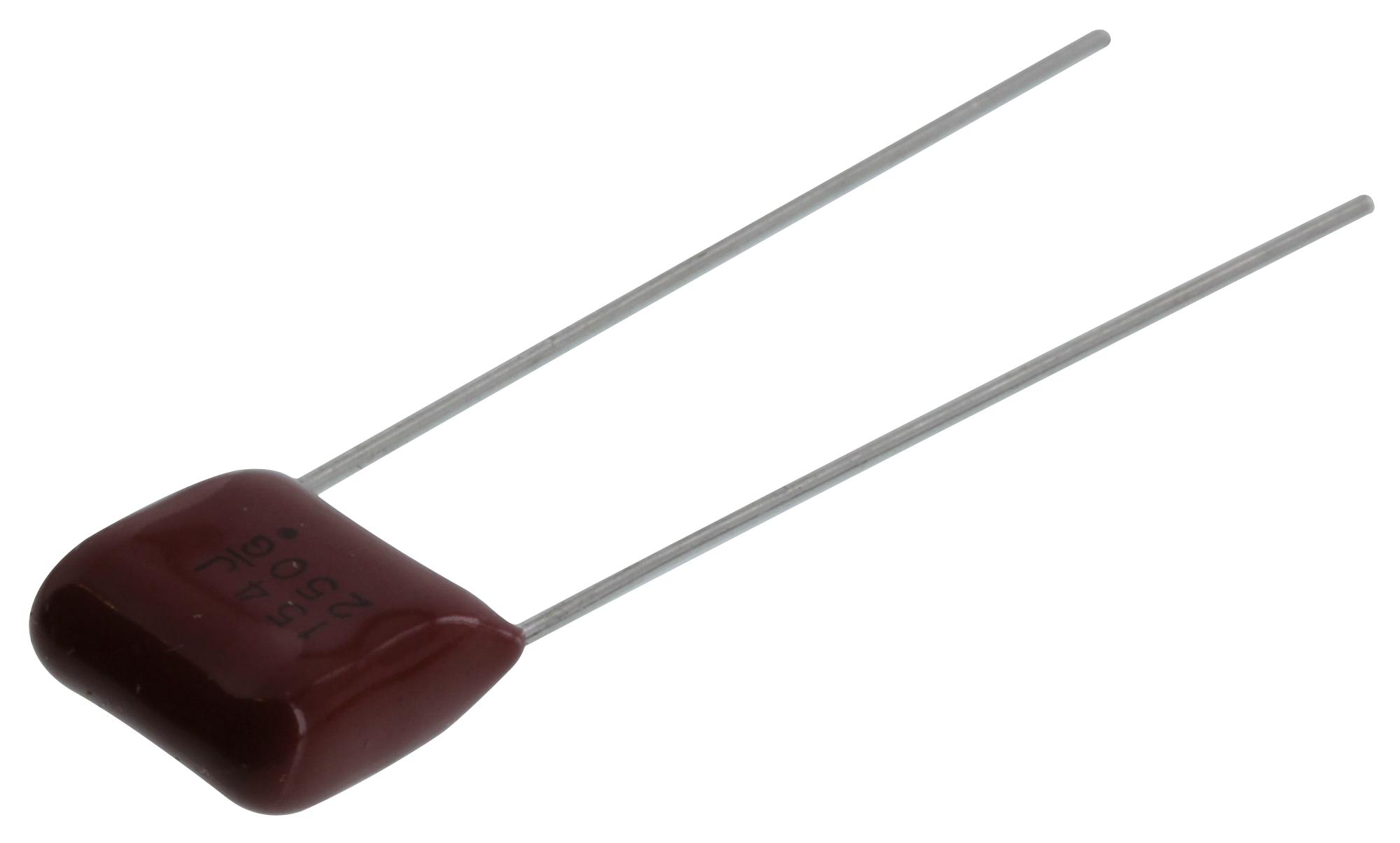

Panasonic ECQE2154JF Metallized Polyester Capacitor
This metallized polyester film capacitor offers excellent electrical performance with a self-healing property and flame retardant epoxy coating, making it ideal for general purpose applications. Designed for reliable operation at rated voltages of 250 VDC, 400 VDC, and 630 VDC, it features a capacitance range from 0.010 UF to 10 UF with tolerances of ±5% or ±10%. The capacitor is resistant to moisture at 85°C and 85% RH for 500 hours, compliant with RoHS regulations, and suitable for various electronic circuits requiring stable performance and high durability.
Panasonic ECQE2154JF Metallized Polyester Capacitor Specifications:
- Capacitance range: 0.010 UF to 10 UF (E12 series)
- Rated voltages: 125 VAC, 250 VAC, 400 VDC, 630 VDC
- Capacitance tolerance: ±5% (J), ±10% (K)
- Temperature range: -40°C to +105°C
- Insulation resistance: 9000 MΩ at 250 VDC to 630 VDC
- Dissipation factor: ≤1.0% at 20°C, 1 kHz
- Voltage withstand: 1500 VAC to enclosure, rated voltage x 230%
- Moisture resistance: 85°C, 85% RH for 500 hours
- RoHS compliant, flame retardant epoxy resin coating, non-inductive construction
- Dimension specifications include lengths approximately 124-129 mm, diameters around 7.5-7.9 mm depending on capacitance
Buy the Panasonic Series ECQE Metallized Polyester Film Capacitor: ECQE2154JF
Order the Panasonic ECQE2154JF metallized polyester film capacitor today to ensure high-quality electrical performance with excellent moisture resistance and flame retardant features. Perfect for general-purpose usage, this capacitor offers a broad capacitance range from 0.010 UF to 10 UF, rated voltages up to 630 VDC, and adheres to RoHS standards. Available with easy online purchase options, it provides durability, stability, and reliable operation in a variety of electronic circuits, making it a trusted choice for engineers and technicians.
Buy Panasonic ECQE2154JF now and experience unmatched reliability and performance for your electronic projects.
Frequently Asked Questions
Where can I buy Panasonic ECQE2154JF?
You can click on the BUY or RFQ button to purchase ECQE2154JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE2154JF?
You can download the ECQE2154JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE2154JF?
Panasonic
