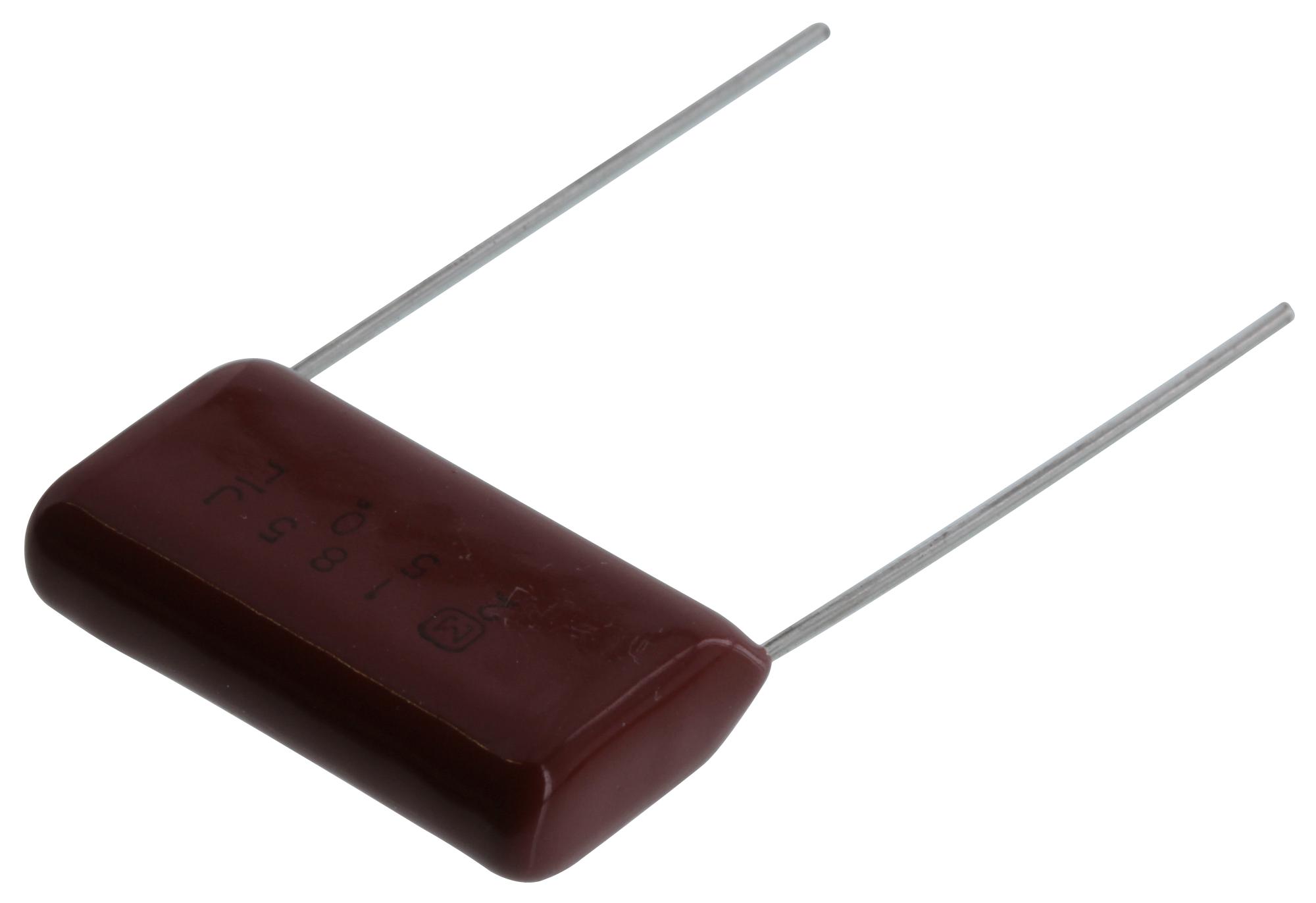

Panasonic ECQE2185JF Metallized Polyester Capacitor
This metallized polyester film capacitor offers excellent electrical characteristics and self-healing properties, with flame retardant epoxy resin coating for safety and durability. Ideal for general-purpose applications, it features moisture resistance at 85 °C and 85% RH for 500 hours, and is RoHS compliant. Its non-inductive construction ensures reliable performance across a wide temperature range from -40°C to +105°C, making it suitable for electronic circuits demanding stable capacitance, high insulation resistance, and withstand voltage up to 630 VDC or 250/400/125 VAC options. Compact, reliable, and compliant with safety standards, it is perfect for diverse industrial and consumer electronics.
Panasonic ECQE2185JF Metallized Polyester Capacitor Specifications:
- Capacitance Range: 0.010 UF to 10 UF (E12), 0.056 UF to 2.2 UF (style B)
- Rated Voltage: 125 VAC, 250 VDC, 400 VDC, 630 VDC
- Capacitance Tolerance: +5% (J), +10% (K)
- Temperature Range: -40°C to +105°C
- Dissipation Factor: ≤1.0% at 20°C, 1 kHz
- Insulation Resistance: ≥9000 MΩ at 250 VDC to 630 VDC
- Rated Voltage Derating: 1.25%/°C above 85°C
- Moisture Resistance: 85°C, 85% RH for 500 hours
- RoHS Compliant: Yes
- Flame retardant epoxy resin coating for safety
Buy the Panasonic Series ECQE Metallized Polyester Film Capacitor: ECQE2185JF
Purchase Panasonic ECQE2185JF online today to benefit from superior electrical stability, moisture resistance, and safety features. This reliable film capacitor is ideal for general-purpose electronic applications needing broad temperature operation, flame retardant coating, and RoHS compliance. Its compact design ensures easy integration into circuit boards, providing excellent performance at voltages up to 630 VDC or 125-250 VAC. Enjoy fast delivery and secure online ordering to enhance your electronic device manufacturing, maintenance, or prototype development with industry-grade components.
Buy Panasonic ECQE2185JF now and experience unmatched reliability and performance in your electronic projects with high-quality film capacitors.
