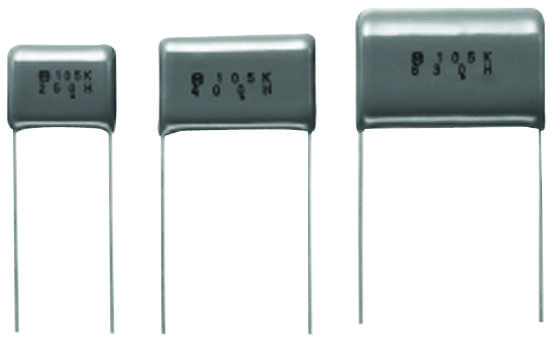

Panasonic ECQE2223KB Polyester Film Capacitor
The Panasonic Metallized Polyester Film Capacitor ECQE(B) series offers high reliability and excellent electrical characteristics in a compact, flame-retardant epoxy resin coating. Suitable for general purpose applications, these capacitors operate within a temperature range from -40°C to +105°C, with rated voltages of 125 VAC and 250 VDC. Capacitance values range from 0.010 UF to 4.7 UF with tolerances of +5% or +10%. They feature low dissipation factors, high insulation resistance, and robust construction, making them ideal for diverse electronic and industrial circuits requiring stable performance and safety compliance.
Panasonic ECQE2223KB Polyester Film Capacitor Specifications:
- Temperature Range: -40°C to +105°C
- Rated Voltage: 125 VAC, 250 VDC (derated at >85°C)
- Capacitance Range: 0.010 UF to 4.7 UF
- Capacitance Tolerance: +5% (J), +10% (K)
- Dissipation Factor: 1.0% at 20°C, 1 kHz
- Insulation Resistance: >2000 MΩ at 500 VDC for 0.47 UF and above
- Dimensions vary with capacitance, typically around 79 mm length, 42 mm width, and 7.4 mm height
- Flame Retardant Epoxy Resin Coating
- Compliance: RoHS
- Frequency Characteristics: Stable from 50 Hz to 10 kHz
- Construction: Metallized Polyester Film, Non-inductive
- Lead Type: Crimped or Taped
- Packaging: 100 pcs/bag, Taping available for automatic insertion
Buy the Buy Panasonic Polyester Film Capacitor Part Number ECQE2223KB Online
Enhance your electronic designs with Panasonic polyester film capacitors, offering reliable performance across a wide temperature range. These capacitors feature low dissipation factors, high insulation resistance, flame-retardant epoxy coating, and precision tolerances, making them suitable for general-purpose applications. Whether for industrial, commercial, or consumer electronics, purchasing online ensures you receive high-quality components with quick delivery, expert support, and competitive pricing. Trust Panasonic for durable, stable, and safe capacitors optimized for modern electronic needs.
Get Panasonic ECQE2223KB today—built for precision, safety, and long-lasting durability in electronic circuits.
Frequently Asked Questions
Where can I buy Panasonic ECQE2223KB?
You can click on the BUY or RFQ button to purchase ECQE2223KB from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE2223KB?
You can download the ECQE2223KB datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE2223KB?
Panasonic
