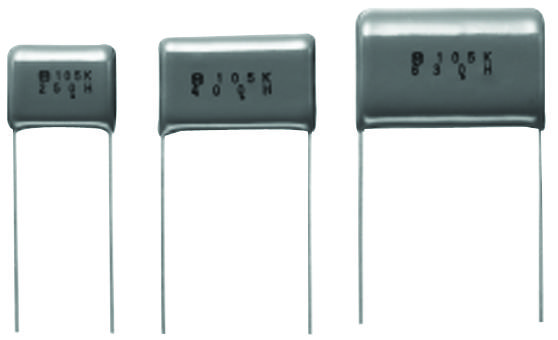

Panasonic ECQE2685KF Metallized Polyester Capacitor
Metallized Polyester Film Capacitor with non-inductive construction, flame retardant epoxy coating, and self-healing properties. Suitable for general purpose applications such as noise suppression and across-the-line filtering. Rated voltages range from 100VDC to 1250VDC with capacitance from 0.0010 uF to 10 uF, with tolerances of +5% or +10%. Designed to operate between -40°C and +105°C, these capacitors exhibit excellent electrical characteristics, low dissipation factor, high insulation resistance, and compliance with RoHS regulations, making them reliable for both domestic and industrial use.
Panasonic ECQE2685KF Metallized Polyester Capacitor Specifications:
- Rated voltages: 100VDC, 250VDC, 400VDC, 630VDC, 1000VDC, 1250VDC, and 125VAC
- Capacitance range: 0.0010 uF to 10 uF (E12 series)
- Capacitance tolerance: +5% (J), +10% (K)
- Temperature range: -40°C to +105°C
- Dissipation factor: ≤1.0% at 20°C, 1kHz
- Insulation resistance: ≥20000 MΩ at 20°C, 100VDC
- Pulse rise time handling: Up to 10,000 cycles with specified dV/dt
- Dimensions vary with capacitance and voltage rating, approximately 10-26 mm in length and 7-17 mm in diameter
- Compliance: RoHS directive
- Construction: Metallized polyester film with flame retardant epoxy resin coating
- Applications: Noise suppression, across-the-line filtering, general purpose use
- Connector type: Straight, crimped lead, or taped options
- Operating temperature: -40°C to +105°C
- Seismic resistance: Designed for stability in various environmental conditions
- Certification: UL Listed, CSA Certified
Buy the Panasonic Series ECQE Capacitor: ECQE2685KF
Enhance your electronic circuits with the Panasonic Series ECQE metallized polyester film capacitor. Designed for reliability and efficiency, it offers a broad voltage range from 100VDC to 1250VDC and capacitance from 0.0010 to 10 uF. The robust construction features flame retardant epoxy coating and self-healing properties, ensuring long-term performance. Perfect for noise suppression, EMI filtering, and general purpose applications across various industries. Purchase online now for fast delivery and consistent quality that ensures your project's success.
Order your Panasonic Series ECQE 2685KF metallized polyester film capacitor today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Panasonic ECQE2685KF?
You can click on the BUY or RFQ button to purchase ECQE2685KF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE2685KF?
You can download the ECQE2685KF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE2685KF?
Panasonic
