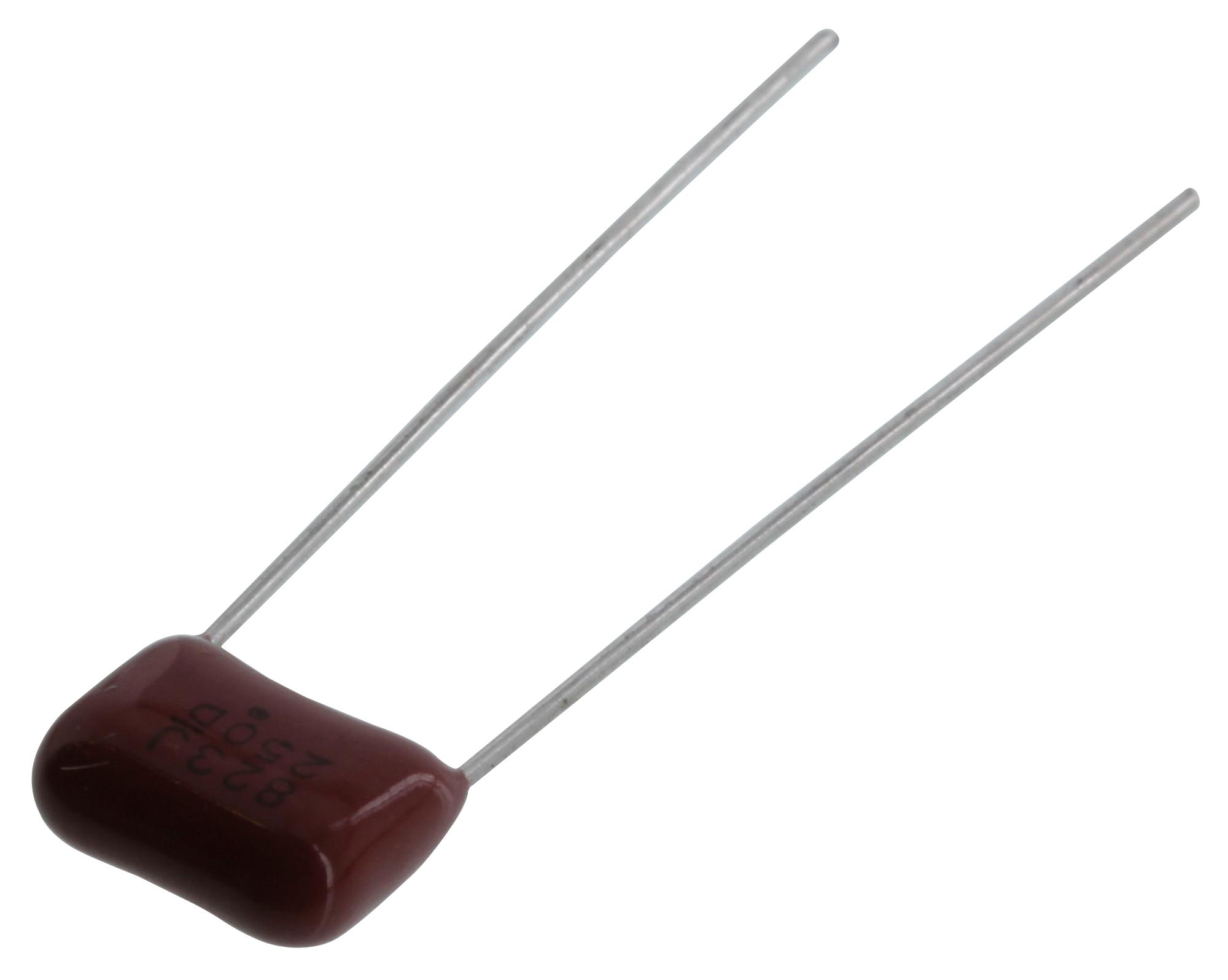

Panasonic ECQE2823JF High Voltage Film Capacitor
The ECQE2823JF is a high-voltage polyester film capacitor designed for general purpose use in electronic circuits. It offers excellent electrical characteristics, self-healing properties, and flame retardant epoxy resin coating. Suitable for applications requiring reliable noise suppression and transient voltage management, it operates across a voltage range of 100V to 1250V DC and AC. Constructed with metallized polyester film, it features various capacitance options and lead configurations, making it ideal for industrial, power supply, and filtering applications with RoHS compliance ensuring environmental safety.
Panasonic ECQE2823JF High Voltage Film Capacitor Specifications:
- Rated Voltage: 100V to 1250V [DC], 125V [AC]
- Capacitance Range: 0.0010 uF to 0.22 uF (E12)
- Capacitance Tolerance: +5 % (J), +10 % (K)
- Operating Temperature Range: -40°C to +105°C
- Self-healing property, Flame retardant epoxy resin coating, RoHS compliant
- Dimensions: Length approx. 15.5 mm, Width approx. 6.0 mm, Height approx. 11.0 mm
- Package: Taping and bulk options available, with lead configurations for automatic insertion
- Permissible voltage in AC: based on sine wave application, limited by derating at high frequency
- Designed for noise suppression, across-the-line filters, and high voltage circuits
Buy the Buy Panasonic ECQE2823JF High Voltage Film Capacitor Part Number ECQE2823JF Online
Purchase the Panasonic ECQE2823JF high voltage film capacitor online today for excellent electrical performance in power, noise filtering, and industrial applications. This reliable capacitor features self-healing metallized polyester film, flame retardant epoxy coating, and RoHS compliance. It covers a voltage range of 100V to 1250V DC and AC, with a capacitance range up to 0.22 uF. Ideal for professionals and engineers seeking durable, high-voltage filtering solutions, it’s available with various lead and packaging options to suit your assembly needs. Secure fast shipping and expert support now!
Get Panasonic ECQE2823JF high voltage film capacitor today—built for noise suppression, transient voltage stability, and long-lasting reliability.
Frequently Asked Questions
Where can I buy Panasonic ECQE2823JF?
You can click on the BUY or RFQ button to purchase ECQE2823JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE2823JF?
You can download the ECQE2823JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE2823JF?
Panasonic
