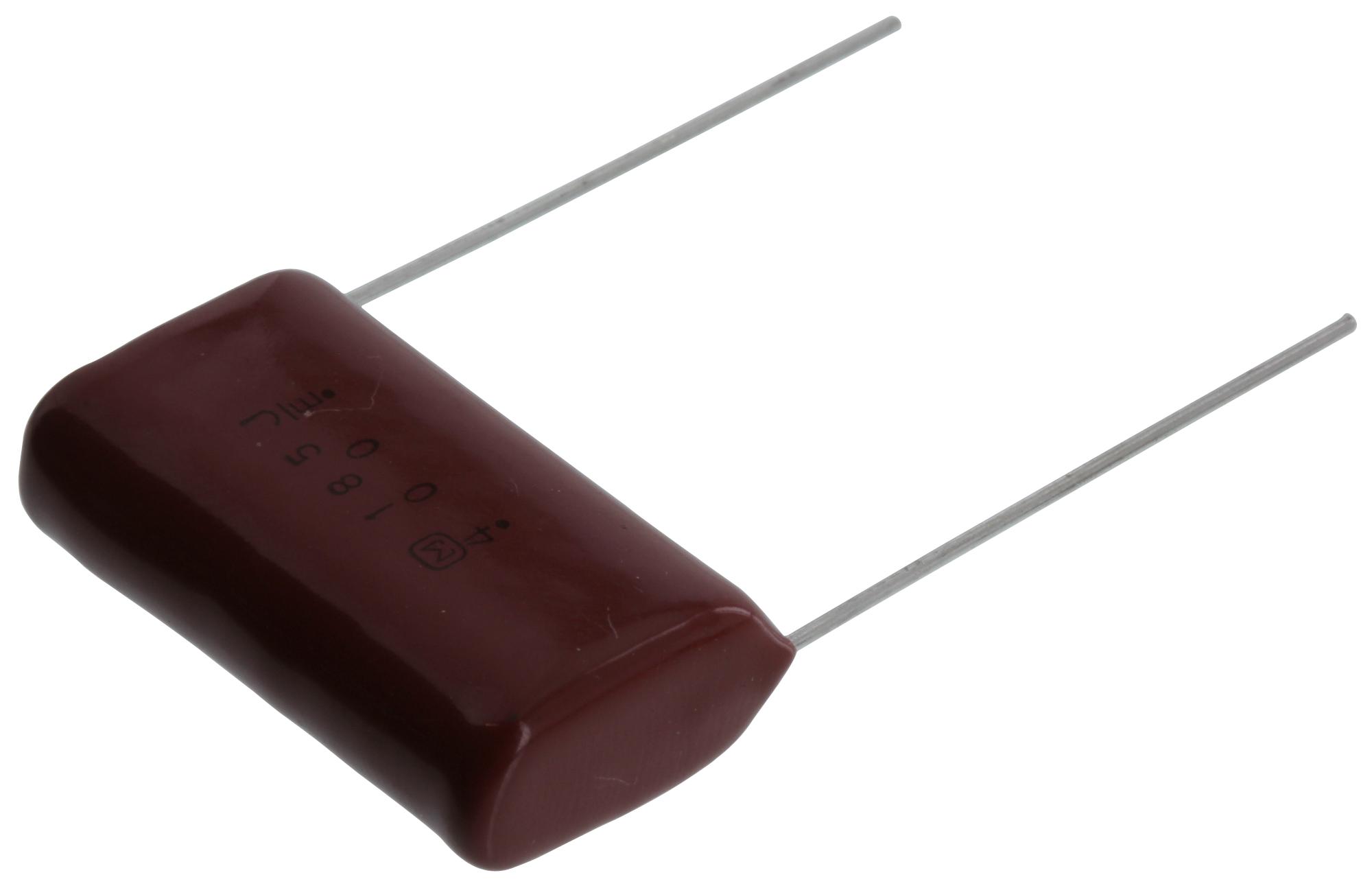

Panasonic ECQE4185JF Polyester Film Capacitor
Panasonic metallized polyester film capacitor series designed for general-purpose applications, featuring self-healing properties, flame retardant epoxy coating, and moisture resistance up to 85°C and 85% RH for 500 hours. Suitable for various industrial environments, these capacitors offer high reliability, excellent electrical characteristics, and compliance with RoHS standards. Available in various voltage ratings from 125 VAC to 630 VDC, with capacitance ranges between 0.010 UF and 10 UF, making them adaptable for across-the-line noise suppression and motor run applications. Constructed with durable materials for long-lasting performance in demanding conditions.
Panasonic ECQE4185JF Polyester Film Capacitor Specifications:
- Rated voltage: 125 VAC, 250 VAC, 400 VDC, 630 VDC
- Capacitance range: 0.010 UF to 10 UF (E12), 0.056 UF to 2.2 UF
- Capacitance tolerance: +5% (J), +10% (K)
- Temperature range: -40°C to +105°C
- Dissipation factor: ≤1.0% at 20°C, 1 kHz
- Insulation resistance: ≥9000 MΩ at 250 VDC to 630 VDC
- Moisture resistance: 85°C, 85% RH, 500 hours
- Dimensions: varies with capacitance, typically length 10-19 mm, diameter around 4-7.5 mm
- Construction: Metallized polyester film with flame retardant epoxy resin coating
- Compliance: RoHS directive
- Features: Self-healing, moisture resistance, flame retardant coating, non-inductive design
Buy the Panasonic ECQE4185JF – Reliable Polyester Film Capacitor for Industrial Applications
Order Panasonic polyester film capacitors today and ensure durable, high-performance solutions for industrial noise suppression, motor run circuits, and general applications. With flame retardant coating, moisture resistance, and compliance with RoHS standards, these capacitors guarantee safety, reliability, and long-term stability. Suitable for voltage ratings from 125 VAC to 630 VDC and capacitance from 0.010 UF to 10 UF, they meet demanding industry requirements. Purchase online now for fast delivery and superior quality in your engineering projects.
Buy Panasonic ECQE4185JF now and experience unmatched reliability and performance for industrial noise suppression and general-purpose uses.
Frequently Asked Questions
Where can I buy Panasonic ECQE4185JF?
You can click on the BUY or RFQ button to purchase ECQE4185JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE4185JF?
You can download the ECQE4185JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE4185JF?
Panasonic
