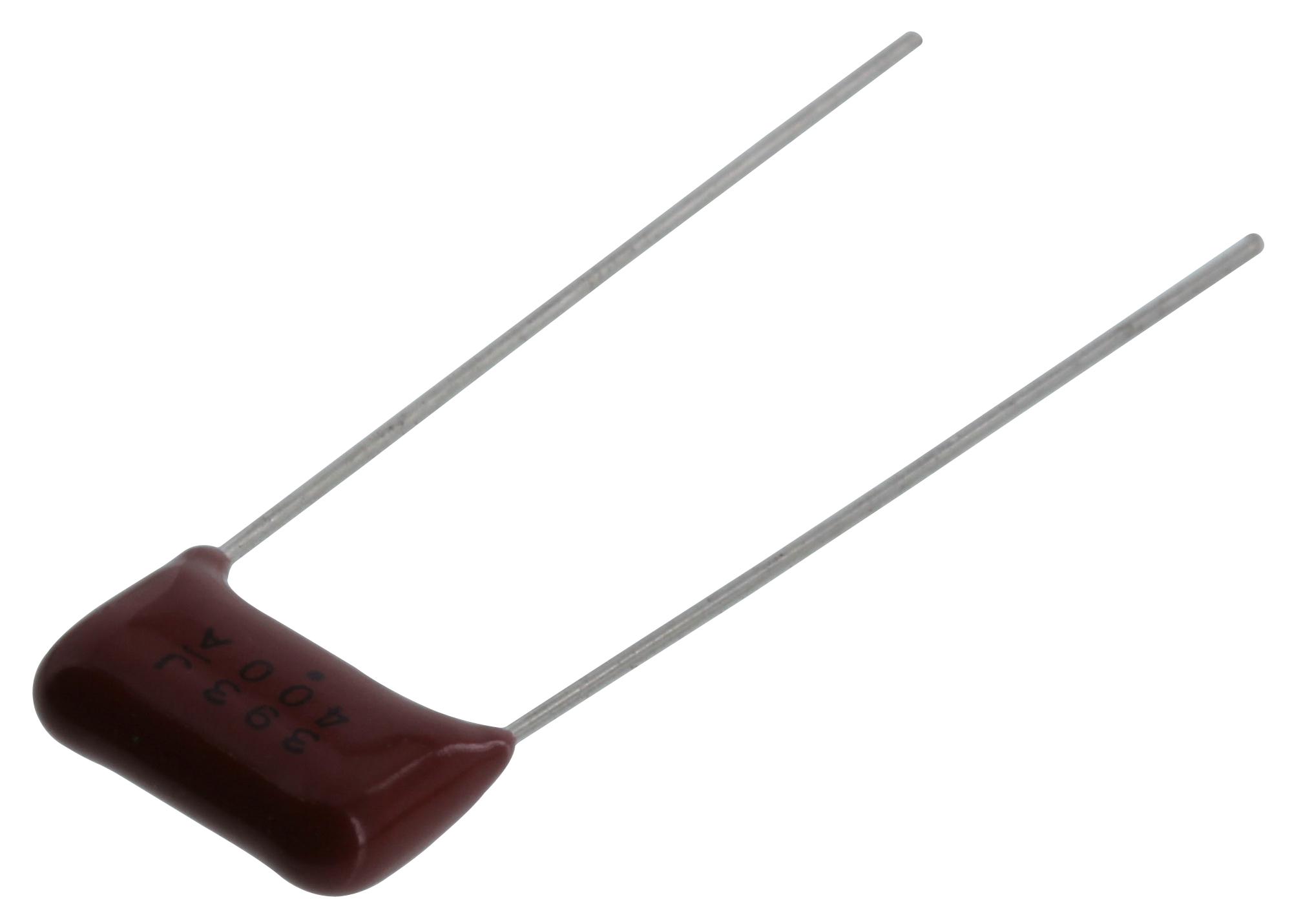

Panasonic ECQE4393JF Film Capacitor
The Panasonic ECQE4393JF series plastic film capacitor offers high reliability for noise suppression and AC power line applications with a voltage rating of 400 V DC, 125 V AC, and capacitance value around 0.039 µF. Crafted with metallized polyester film, it features self-healing properties, flame-retardant epoxy coating, and RoHS compliance, making it suitable for general electronic circuits. Its compact dimensions and high durability ensure consistent performance in various electrical and electronic applications, including across-the-line and filtering functions, adhering to international safety standards for added peace of mind.
Panasonic ECQE4393JF Film Capacitor Specifications:
- Rated voltage: 400 V DC, 125 V AC
- Capacitance: 0.039 µF
- Capacitance tolerance: +5 %, -10 %
- Dielectric: Metallized polyester film
- Maximum surface temperature: 105°C
- Dimensions: Length 21.0 mm, Width 4.5 mm, Height 12.0 mm
- Self-healing property: Yes
- Flame retardant epoxy coating: Yes
- RoHS compliant: Yes
- Operating temperature range: -40°C to +105°C
- Insulation resistance (IR): > 10,000 MΩ at 20°C, 100 V DC
- Dissipation factor (tan δ): 1.0% at 1 kHz
- Pack quantity: 500 pcs.
Buy the Panasonic Series ECQE Capacitor: 400 V DC 125 V AC - ECQE4393JF
Enhance your electronic projects with the Panasonic ECQE4393JF film capacitor. Rated at 400 V DC and 125 V AC, it provides excellent noise filtering and power line stabilization. Its metallized polyester film ensures high reliability with self-healing properties, while the flame-retardant epoxy coating enhances safety. Compact and RoHS compliant, this capacitor is ideal for general electronic applications, including across-the-line filtering, with robust temperature resistance up to 105°C. Purchase online today and ensure stable, safe, and efficient operation for your electronic devices.
Buy Panasonic ECQE4393JF now and experience unmatched reliability and performance in noise suppression and power line filtering applications.
Frequently Asked Questions
Where can I buy Panasonic ECQE4393JF?
You can click on the BUY or RFQ button to purchase ECQE4393JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE4393JF?
You can download the ECQE4393JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE4393JF?
Panasonic
