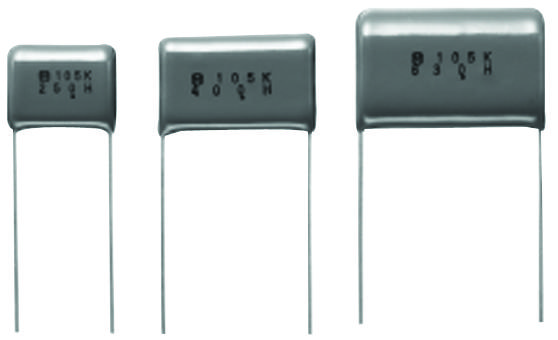

Panasonic ECQE6103KF Metallized Polyester Film Capacitor
The Panasonic ECQ-E6103KF is a metallized polyester film capacitor designed for a wide range of applications. Its non-inductive construction minimizes interference, while the flame retardant epoxy resin coating enhances safety. The capacitor's self-healing property contributes to its reliability and longevity. It is RoHS compliant and suitable for general purpose usage, with specific applications including CD and ignitor circuits. Refer to the datasheet for detailed specifications and recommended operating conditions.
Panasonic ECQE6103KF Metallized Polyester Film Capacitor Specifications:
- Category temp. range: –40 ˚C to +105 ˚C (for 100 VDC, 250 VDC, 400 VDC, 630 VDC, 1000 VDC, 1250 VDC and 125 VAC, 250 VAC)
- Rated voltage: 100 VDC, 250 VDC, 400 VDC, 630 VDC, 1000 VDC, 1250 VDC, 125 VAC, 250 VAC (Derating of rated voltage by 1.25 %/˚C at more than 85 ˚C)
- Capacitance range: 0.0010 µF to 10 µF (E12)
- Capacitance tolerance: ±5 %(J), ±10 %(K)
- Dissipation factor (tan ): tan <=1.0 % (20 ˚C, 1 kHz)
- Withstand voltage: Rated volt. 100 V to 630 VDC: Between terminals:Rated volt.(VDC)✕150% 60 s; Rated volt. 1000 VDC, 1250 VDC: Between terminals:Rated volt. (VDC)✕175%2 s to 5 s or 1000 VAC 60 s; Rated volt. 125 VAC, 250 VAC: Between terminals:Rated volt.(VAC)✕230%60 s
- Insulation resistance (IR): 100 V to 630 VDC: C <=0.33 µF : IR>=9000 MΩ (20˚C, 100 VDC, 60 s); C > 0.33 µF : IR>=3000 MΩ .µF; 1000 VDC, 1250 VDC: IR>=10000 MΩ (20 ˚C, 100VDC, 60 s); IR>=2000 MΩ (20 ˚C, 500VDC, 60 s); 125 VAC, 250 VAC: C <=0.47 µF : IR>=2000 MΩ (20˚C, 500 VDC, 60 s); C > 0.47µF : IR>=3000 MΩ .µF(20˚C,100 VDC,60 s)
