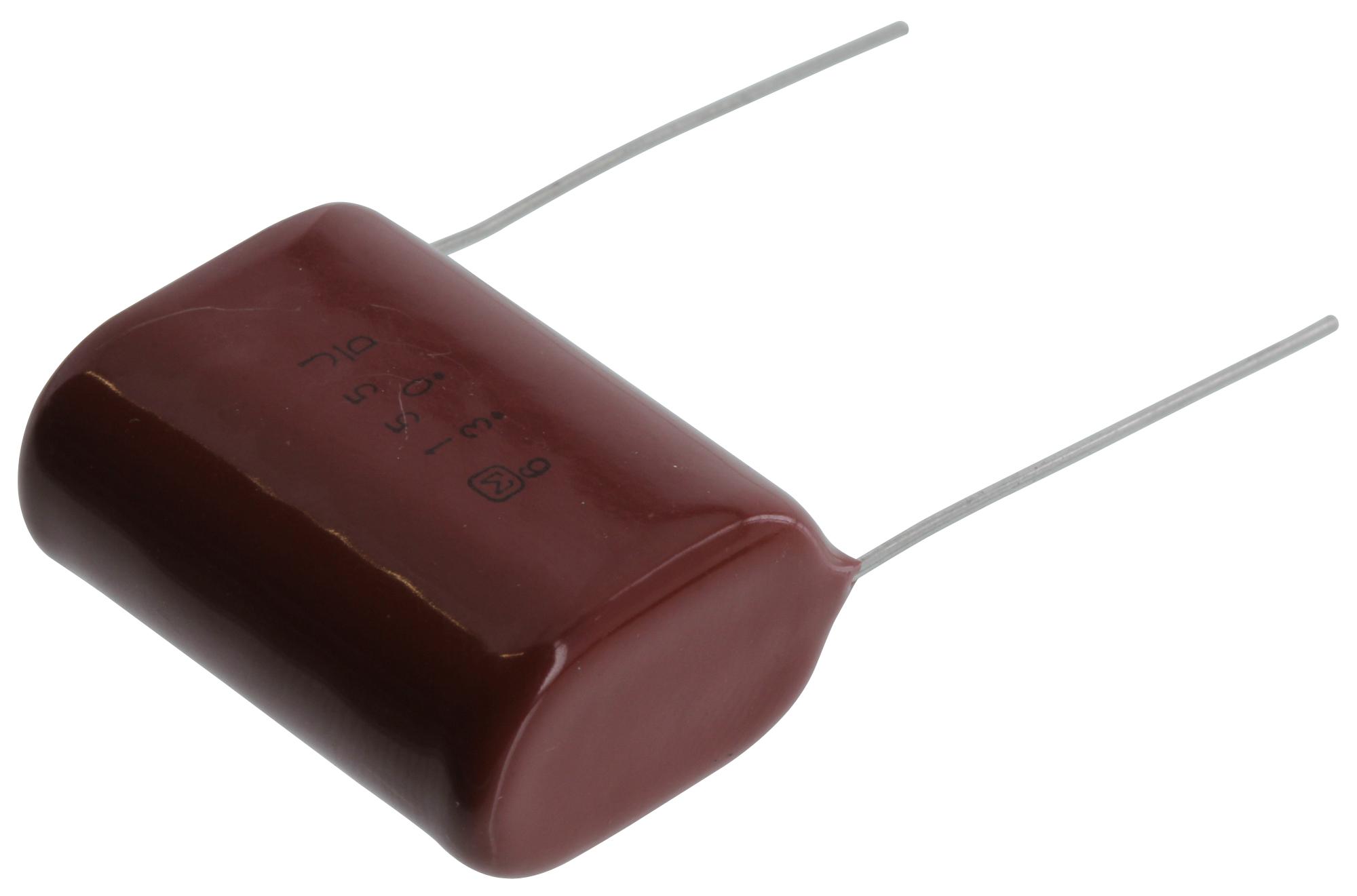

Panasonic ECQE6155JF Metallized Polyester Capacitor
Panasonic's metallized polyester film capacitors, type ECQE(T), feature non-inductive construction with flame retardant epoxy coating, high electrical performance, and moisture resistance up to 85°C and 85% RH for 500 hours. Suitable for general purpose applications, these capacitors exhibit self-healing properties, excellent electrical characteristics, and RoHS compliance, making them ideal for a variety of industrial and electronic applications requiring reliable, flame-retardant film capacitors with stable performance under diverse conditions.
Panasonic ECQE6155JF Metallized Polyester Capacitor Specifications:
- Rated voltage: 125 VAC, 250 VAC, 400 VDC, 630 VDC
- Capacitance range: 0.010 UF to 10 UF (E12), 0.27 pF to 2.2 UF (Style B, across-the-line)
- Capacitance tolerance: ±5% (J), ±10% (K)
- Temperature range: -40°C to +105°C
- Dissipation factor: ≤1.0% at 20°C, 1 kHz
- Insulation resistance: ≥9000 MΩ at 250 VDC to 630 VDC
- Withstand voltage: 1500 VAC (to enclosure), rated voltage × 230% (AC)
- Moisture resistance: 85°C, 85% RH for 500 hours
- Flame retardant epoxy coating, RoHS compliant
- Dimensions vary by capacitance and voltage, detailed in datasheets
- Construction: Metallized polyester film, flame retardant epoxy resin coating
Buy the Panasonic ECQE(T) – Reliable Metallized Polyester Film Capacitor for Industrial Applications
Get your Panasonic ECQE(T) metallized polyester film capacitor now through our online store. Designed for durable, high-performance applications, these capacitors feature flame retardant epoxy coating, moisture resistance, and RoHS compliance, offering stability and safety. Ideal for general purpose use in electronic and industrial systems, they provide excellent electrical characteristics and self-healing properties. Shop today to ensure your projects are equipped with reliable, high-quality capacitors that meet strict safety and environmental standards. Fast shipping available!
Order your Panasonic ECQE(T) film capacitor today and ensure your electronic devices and industrial projects benefit from dependable performance and safety standards.
Frequently Asked Questions
Where can I buy Panasonic ECQE6155JF?
You can click on the BUY or RFQ button to purchase ECQE6155JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE6155JF?
You can download the ECQE6155JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE6155JF?
Panasonic
