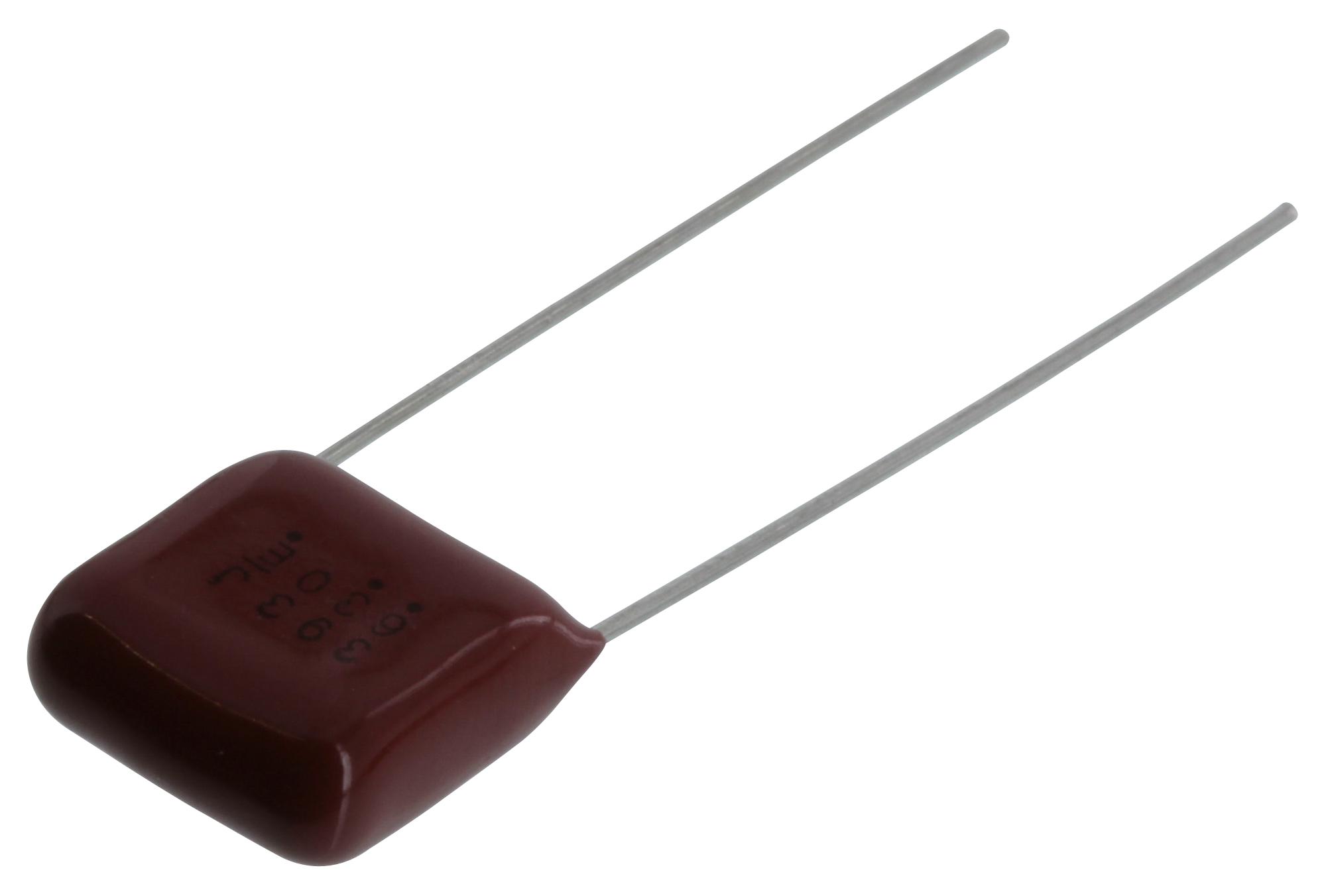

Panasonic ECQE6393JF Polyester Film Capacitor
Panasonic Metallized Polyester Film Capacitor ECQE(T) series offers reliable, flame-retardant, non-inductive construction suitable for general purpose applications. These capacitors feature self-healing properties, excellent electrical characteristics, and moisture resistance at 85 °C, 85% RH for 500 hours. Designed for across-the-line noise suppression and general use, they comply with ROHS standards, making them ideal for industrial and electronic applications that demand durability, safety, and high performance. Available in various voltage ratings from 125 VAC to 630 VDC with capacitance ranging from 0.010 μF to 10 μF.
Panasonic ECQE6393JF Polyester Film Capacitor Specifications:
- Dielectric: Metallized Polyester Film
- Rated Voltages: 125 VAC, 250 VAC, 400 VDC, 630 VDC
- Capacitance Range: 0.010 μF to 10 μF (E12 series)
- Capacitance Tolerance: +5% (J), +10% (K)
- Operating Temperature Range: -40°C to +105°C
- Dissipation Factor: ≤ 1.0% at 20°C, 1 kHz
- Insulation Resistance: ≥ 9000 MΩ at 250 VDC to 630 VDC; ≥ 22000 MΩ at 125 VAC, 250 VAC
- Moisture Resistance: 85°C, 85% RH for 500 hours
- Flame Retardant: Epoxy resin coating
- Self-healing property ensures reliability
- Compliance: ROHS Directive
- Physical Dimensions: Various length, width, height specifications as per model
- Connection: Straight and crimped leads with tape or bulk packaging options
- Designed for noise suppression and general purpose use in industrial electronics
Buy the Panasonic ECQE6393JF – Reliable Noise Suppression Capacitor for Industrial Applications
Purchase Panasonic polyester film capacitors ECQE series online today for high durability, flame retardant construction, moisture resistance, and reliable electrical performance. Designed for general purpose, noise suppression, and industrial applications, these capacitors conform with ROHS standards. They feature self-healing properties, excellent electrical characteristics, and a wide temperature range from -40°C to +105°C. Available in multiple voltages and capacitance values, order now to ensure your electronics are protected and operate efficiently with Panasonic quality.
Get Panasonic ECQE6393JF today—built for precision and long-lasting durability in industrial electronics and noise suppression.
Frequently Asked Questions
Where can I buy Panasonic ECQE6393JF?
You can click on the BUY or RFQ button to purchase ECQE6393JF from an authorized Panasonic distributor.
How do I troubleshoot issues or seek technical support for part ECQE6393JF?
You can download the ECQE6393JF datasheet or visit the Panasonic website for support.
Who is the manufacturer of ECQE6393JF?
Panasonic
